Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

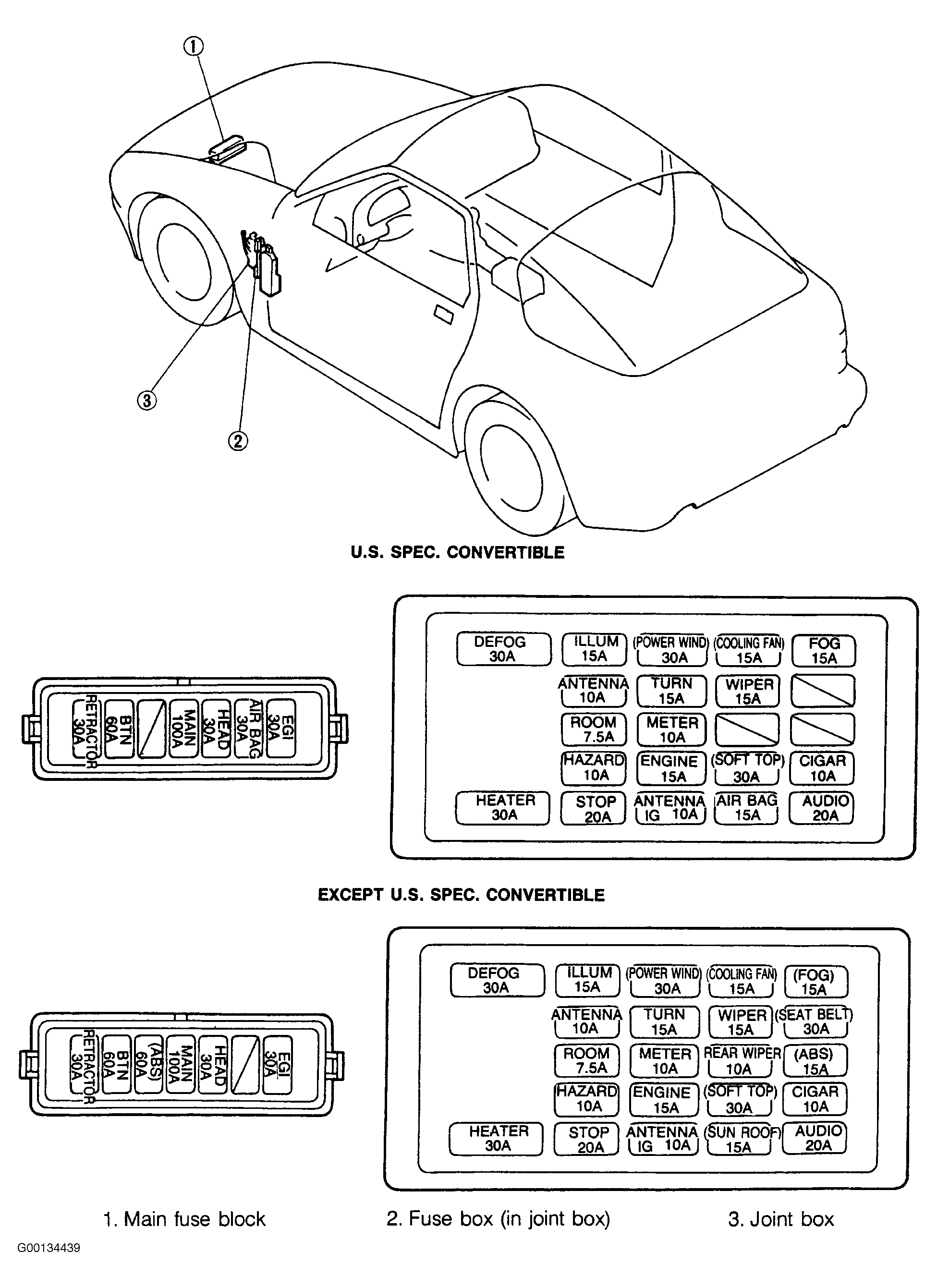

| Fuse Box | In Left Kick Panel. See Fig 1. |
| Power Window Master Control Switch | Driver's Door Armrest |
| Power Window Motor | Inside Respective Door |
| Passenger Power Window Switch | Passenger Door Armrest |
