Connector Identification

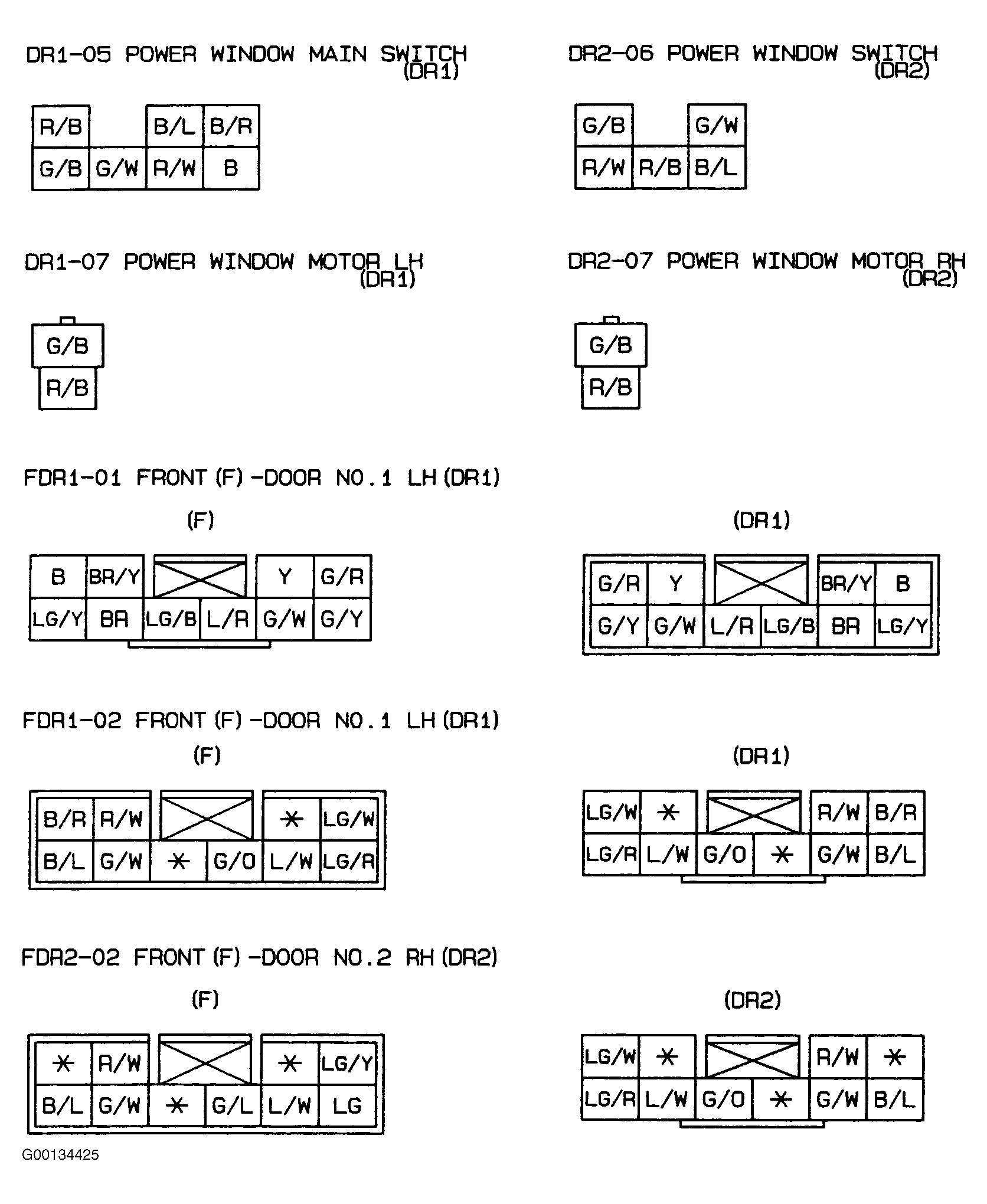

Fig 1: Identifying Power Window System Connectors & Terminals
Courtesy of MAZDA
Courtesy of MAZDA
