Switching Solenoid Valve

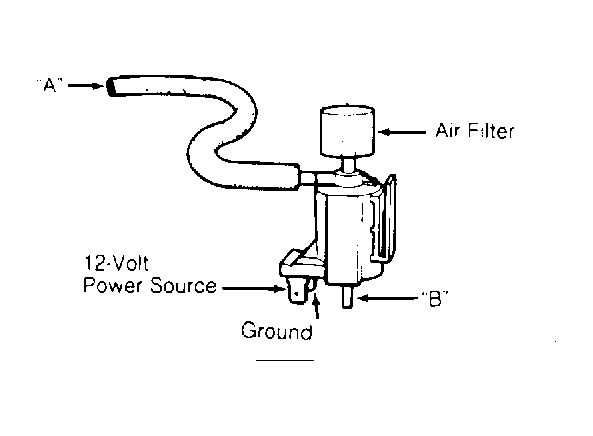

- Disconnect vacuum hoses from switching solenoid valve. Blow through port "A". See Figure
. Air should flow from port "B". Remove connector from solenoid valve.
- Apply battery voltage and ground to proper terminals. See Figure
. Blow through port "A". Air should flow from air filter.
