Code 10: Intake Air Temp Sensor-Airflow Meter

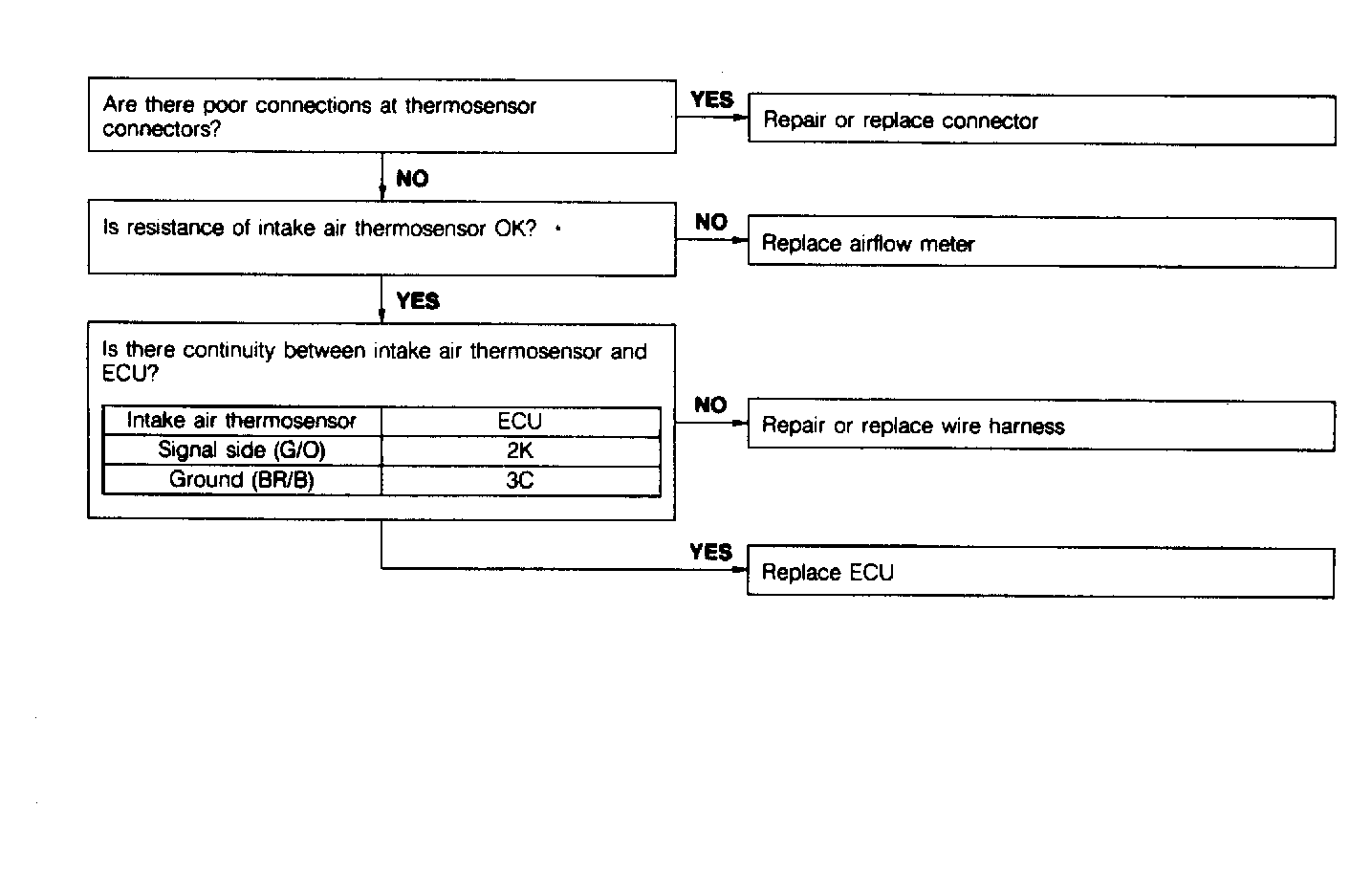

Fig 1: Code 10: Intake Air Temp Sensor-Airflow Meter Flow Chart
G117680Courtesy of MAZDA MOTORS CORP.
