Engine Controls - Tests W/Codes
>>
Trouble Code Identification Chart
>>
Code 11: Intake Air Temp Sensor-Engine
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 11: Intake Air Temp Sensor-Engine

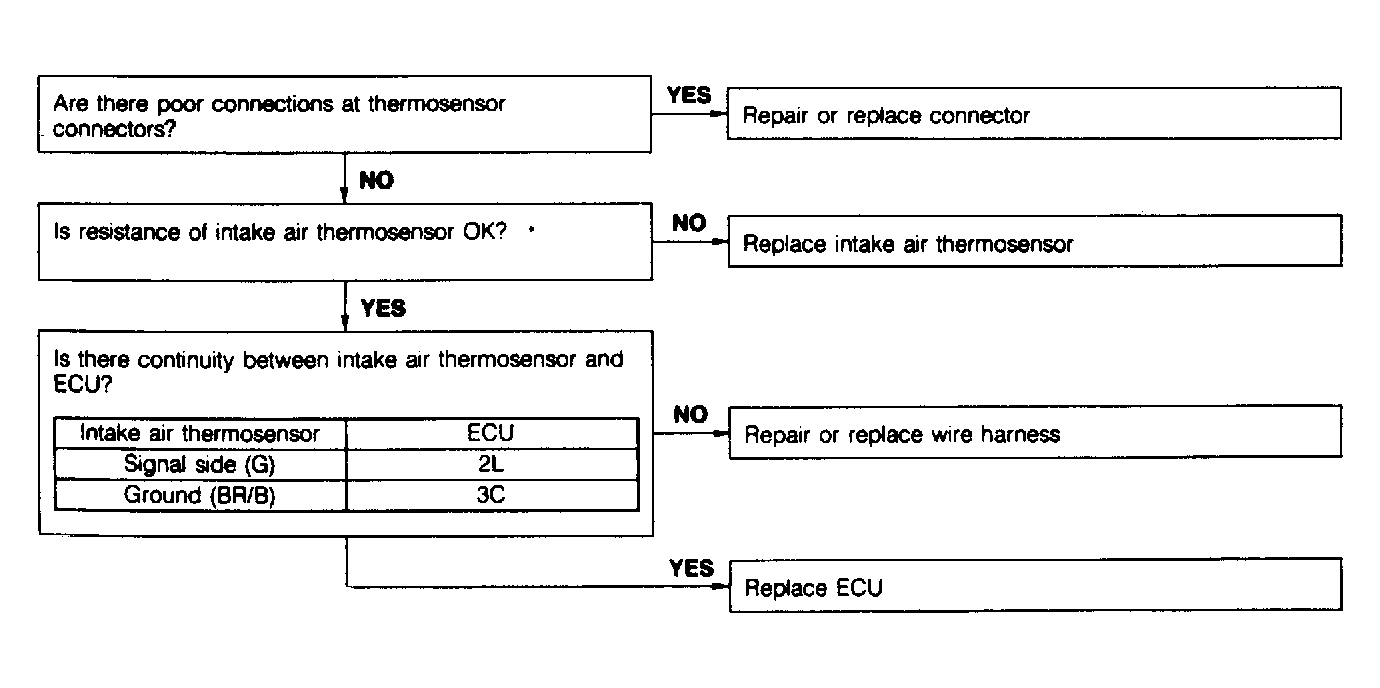

Fig 1: Code 11: Intake Air Temp Sensor-Engine
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
