Code 18: Throttle Sensor

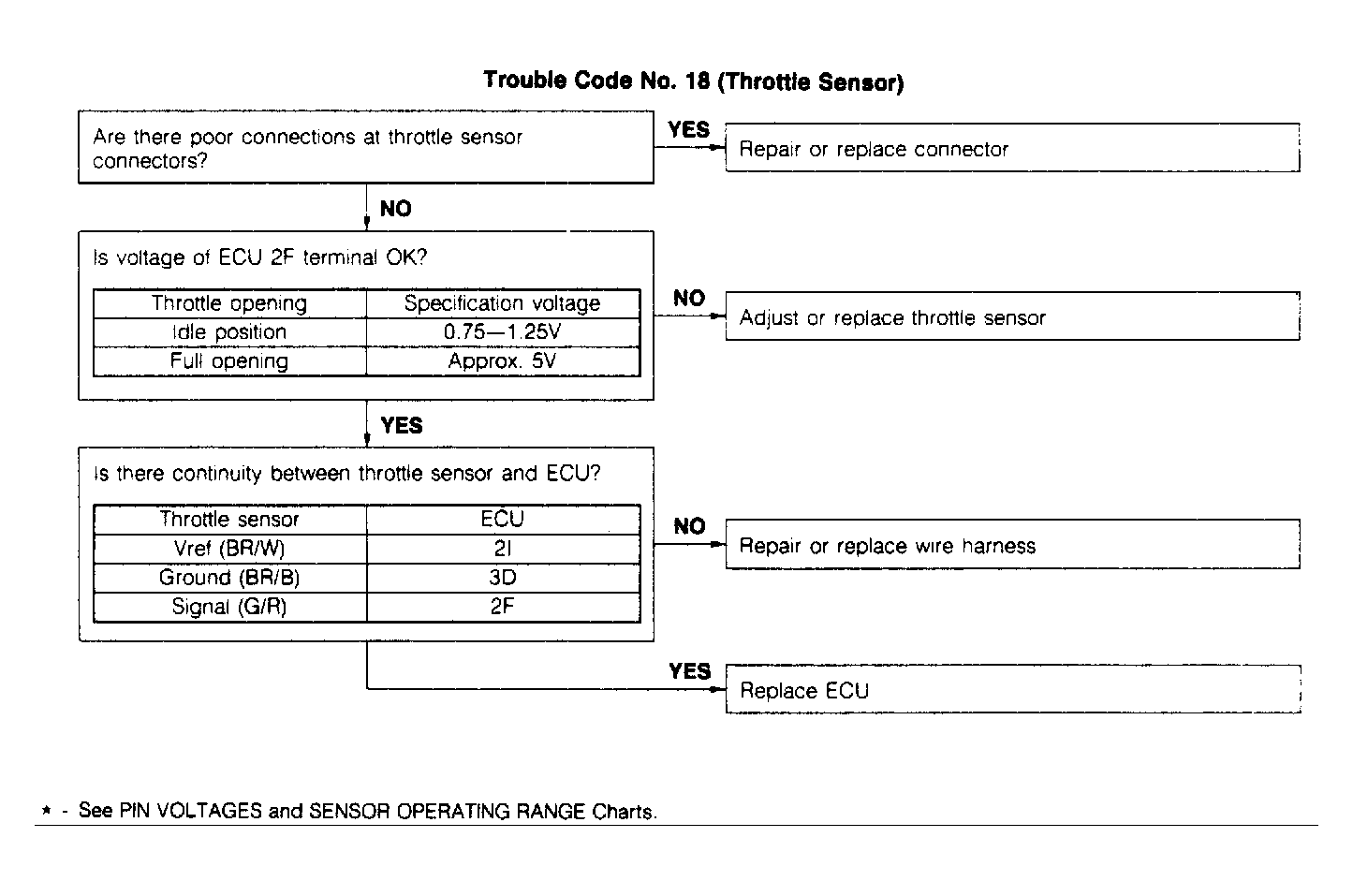

Fig 1: Code 18: Throttle Sensor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
