Code 20: Metering Oil Pump Position Sensor

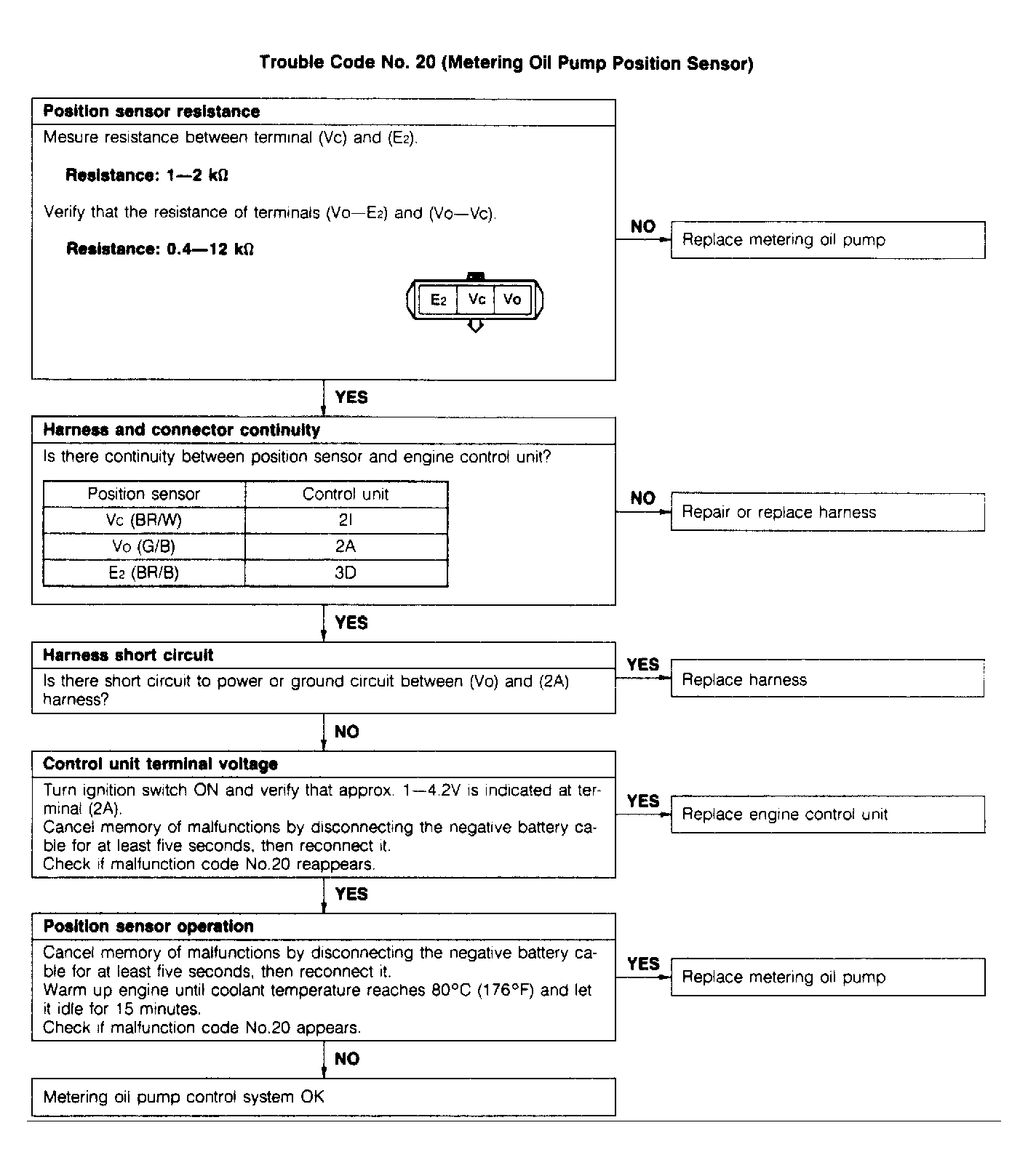

Fig 1: Code 20: Metering Oil Pump Position Sensor Flow Chart
G90D22049Courtesy of MAZDA MOTORS CORP.
