Code 3: G-Signal-Crank Angle Sensor

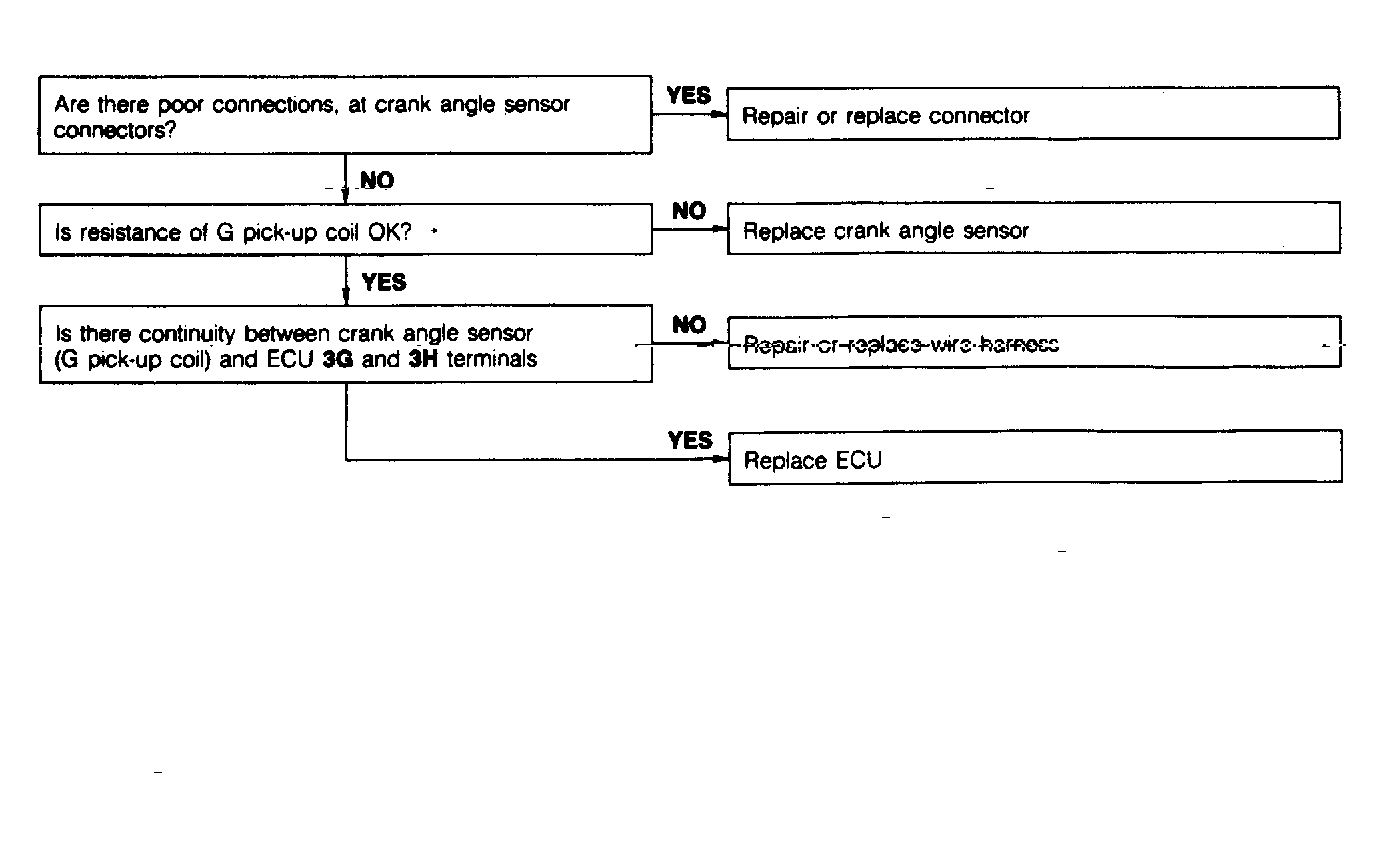

Fig 1: Code 3: G-Signal-Crank Angle Sensor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
