Code 42: Duty Solenoid-Turbo Boost

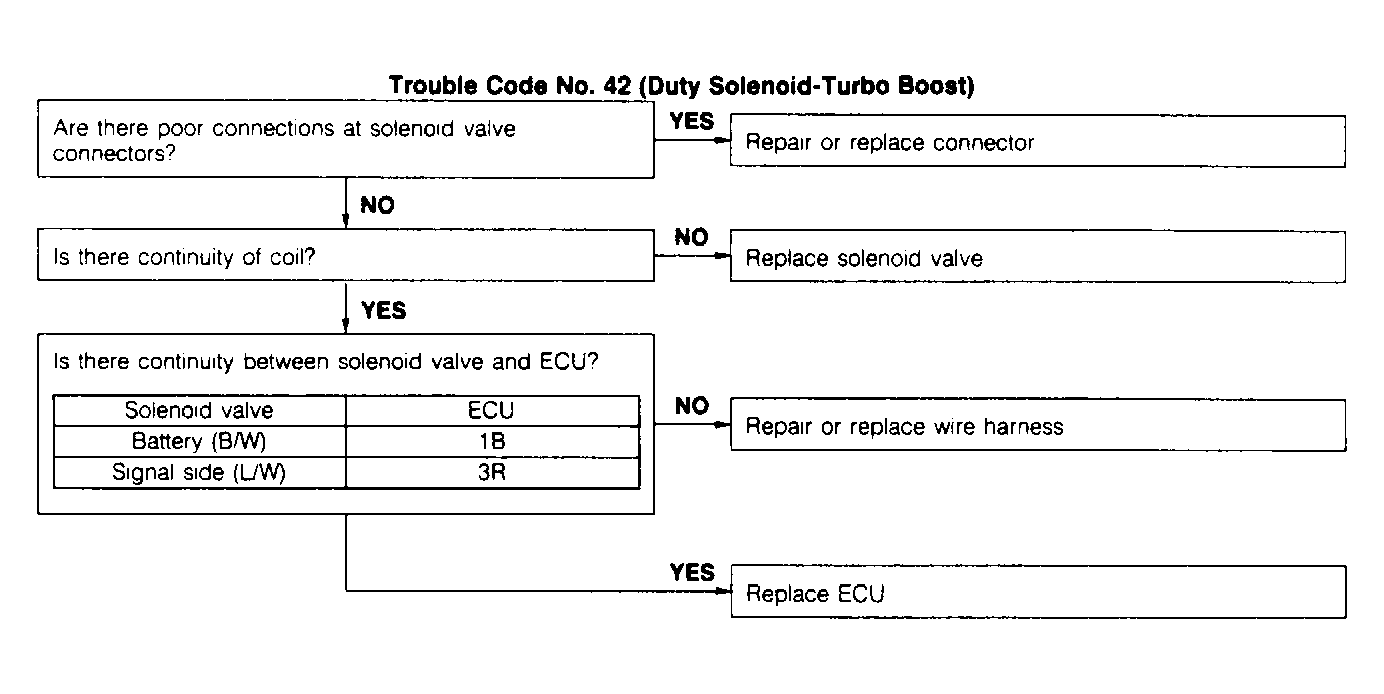

Fig 1: Code 42: Duty Solenoid-Turbo Boost Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
