Code 5: Knock Sensor (Turbo)

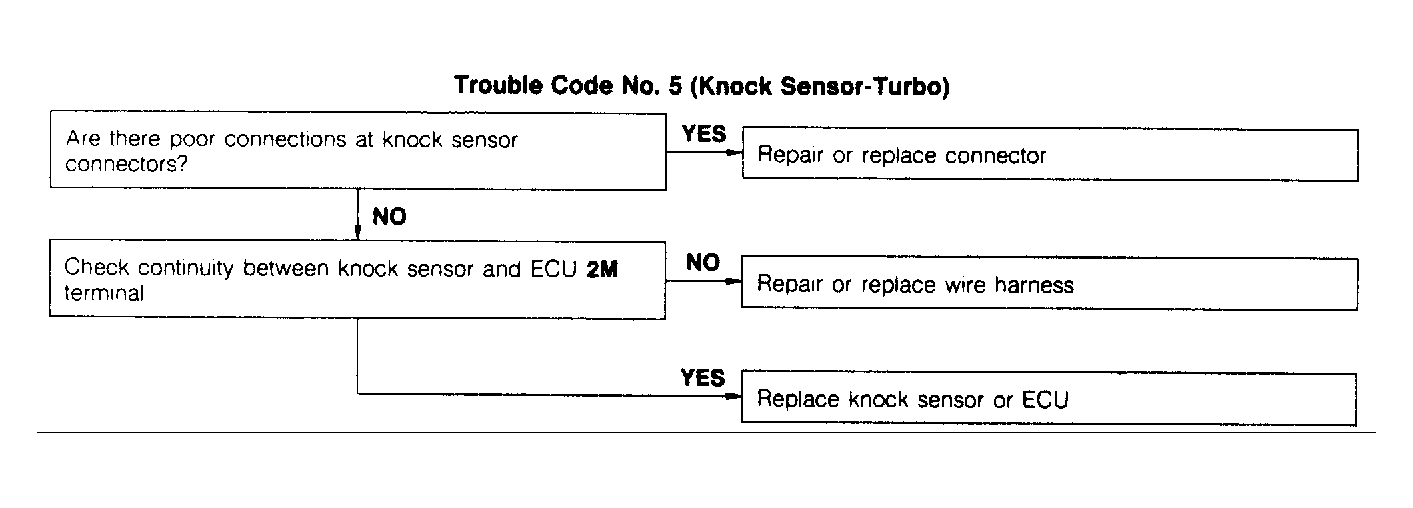

Fig 1: Code 5: Knock Sensor Flow Chart (Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
