Code 71: Front Secondary Injector

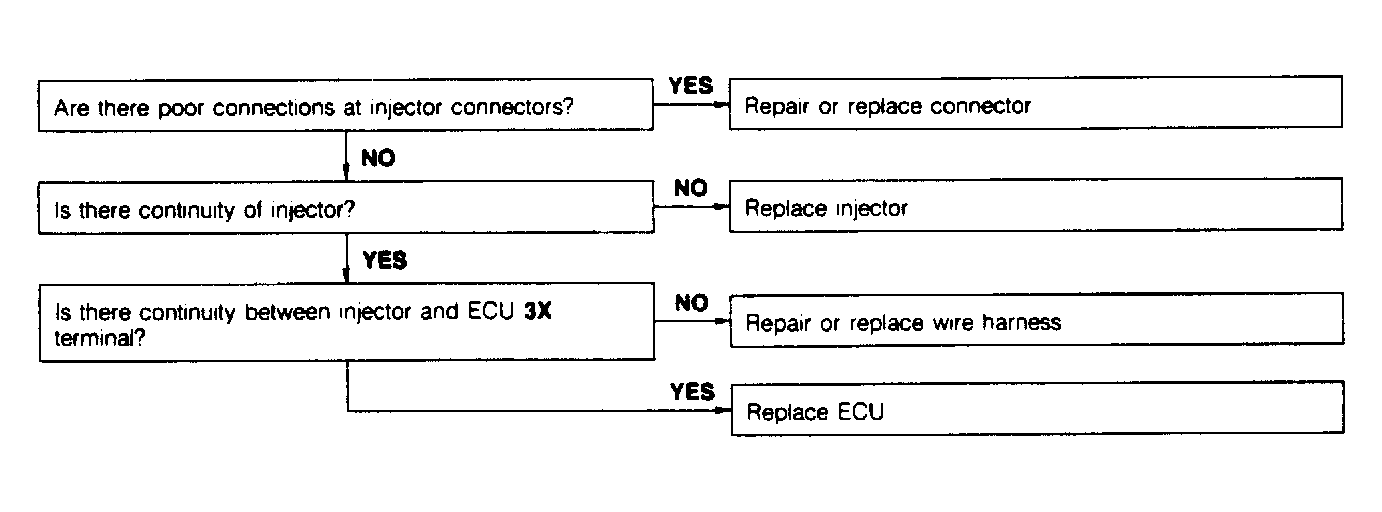

Fig 1: Code 71: Front Secondary Injector Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
