Code 73: Rear Secondary Injector

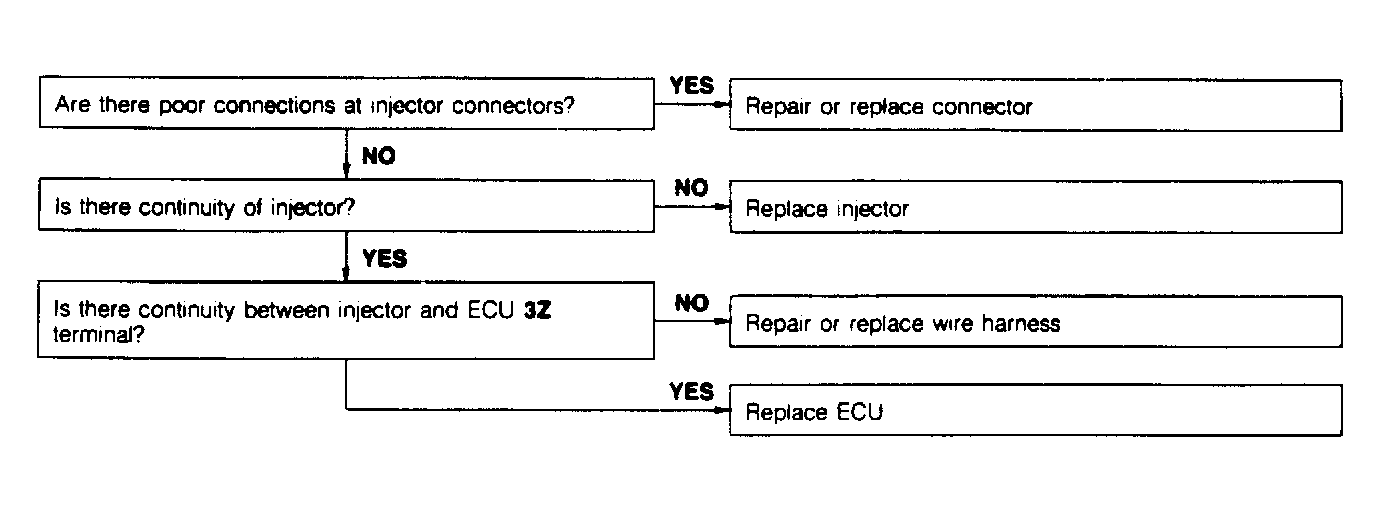

Fig 1: Code 73: Rear Secondary Injector Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
