Trouble Code Identification Chart: Notes

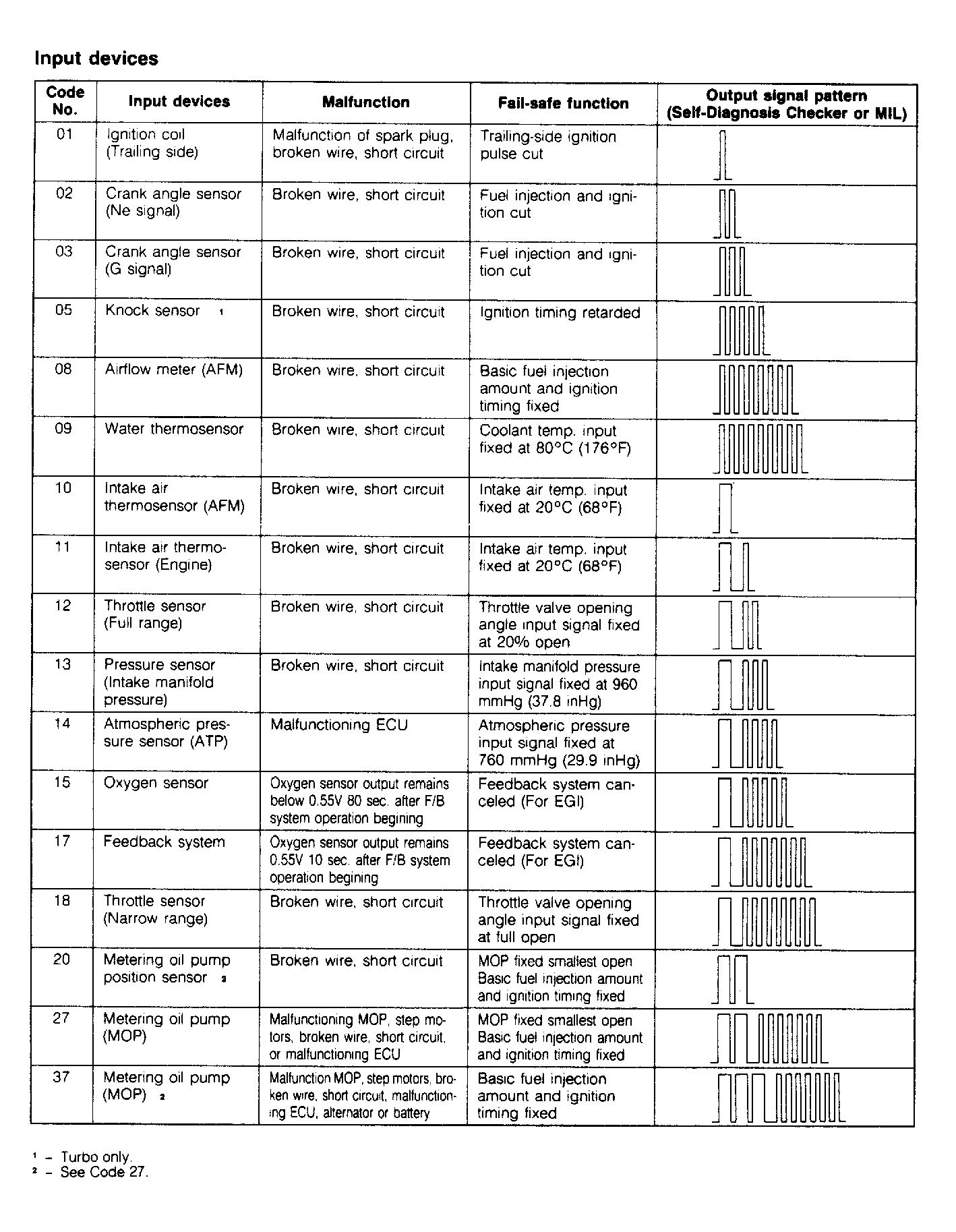

Fig 1: Input Devices, Codes 01-37: Identification chart
G90J21542Courtesy of MAZDA MOTORS CORP.

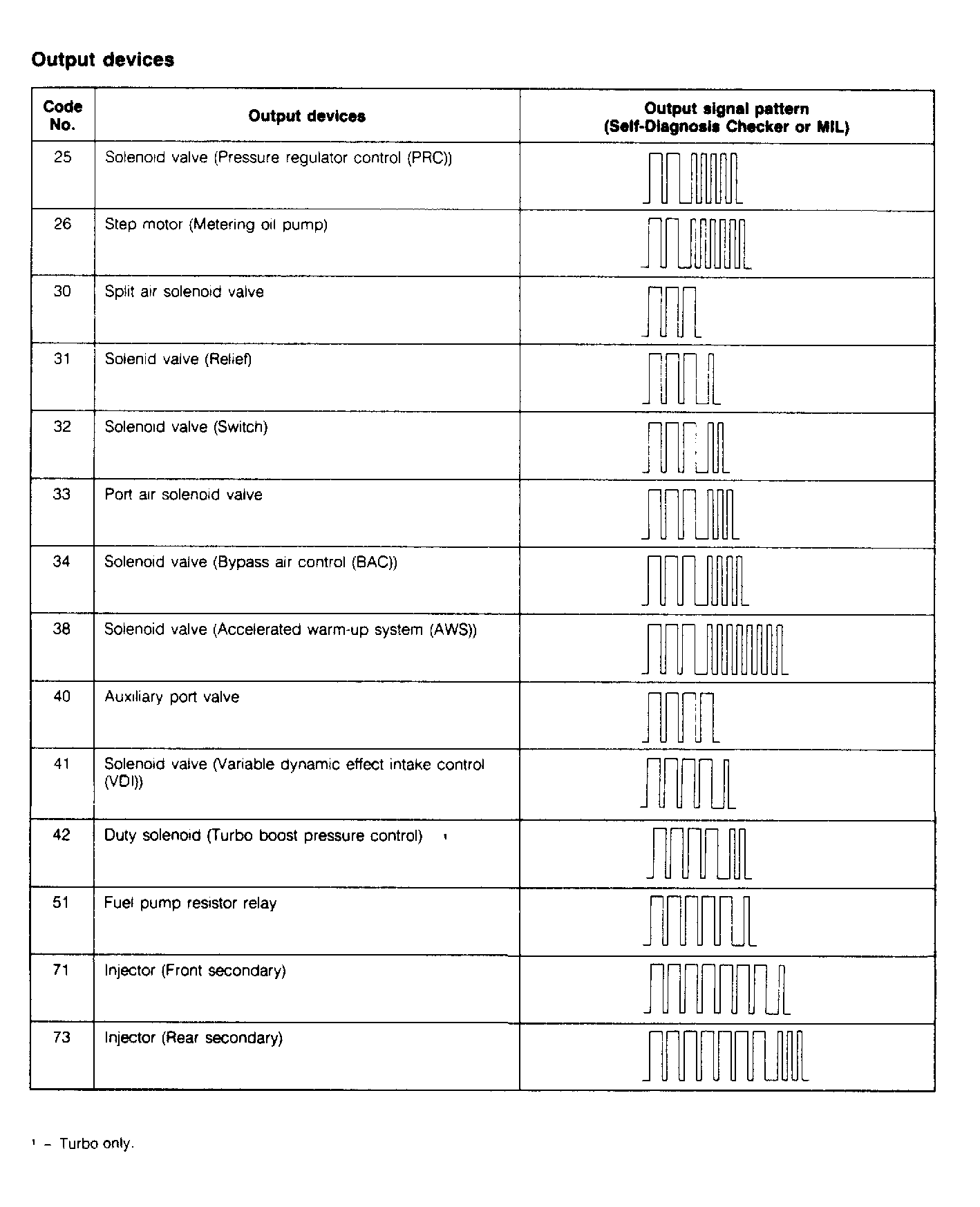

Fig 2: Output Devices, Codes 25-73: Identification Chart
G90A21543Courtesy of MAZDA MOTORS CORP.
