DOHC Charts

Fig 1: DOHC ECU Pin Voltage Chart (1 of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: DOHC ECU Pin Voltage Chart (2 of 3)

Courtesy of MAZDA MOTORS CORP.

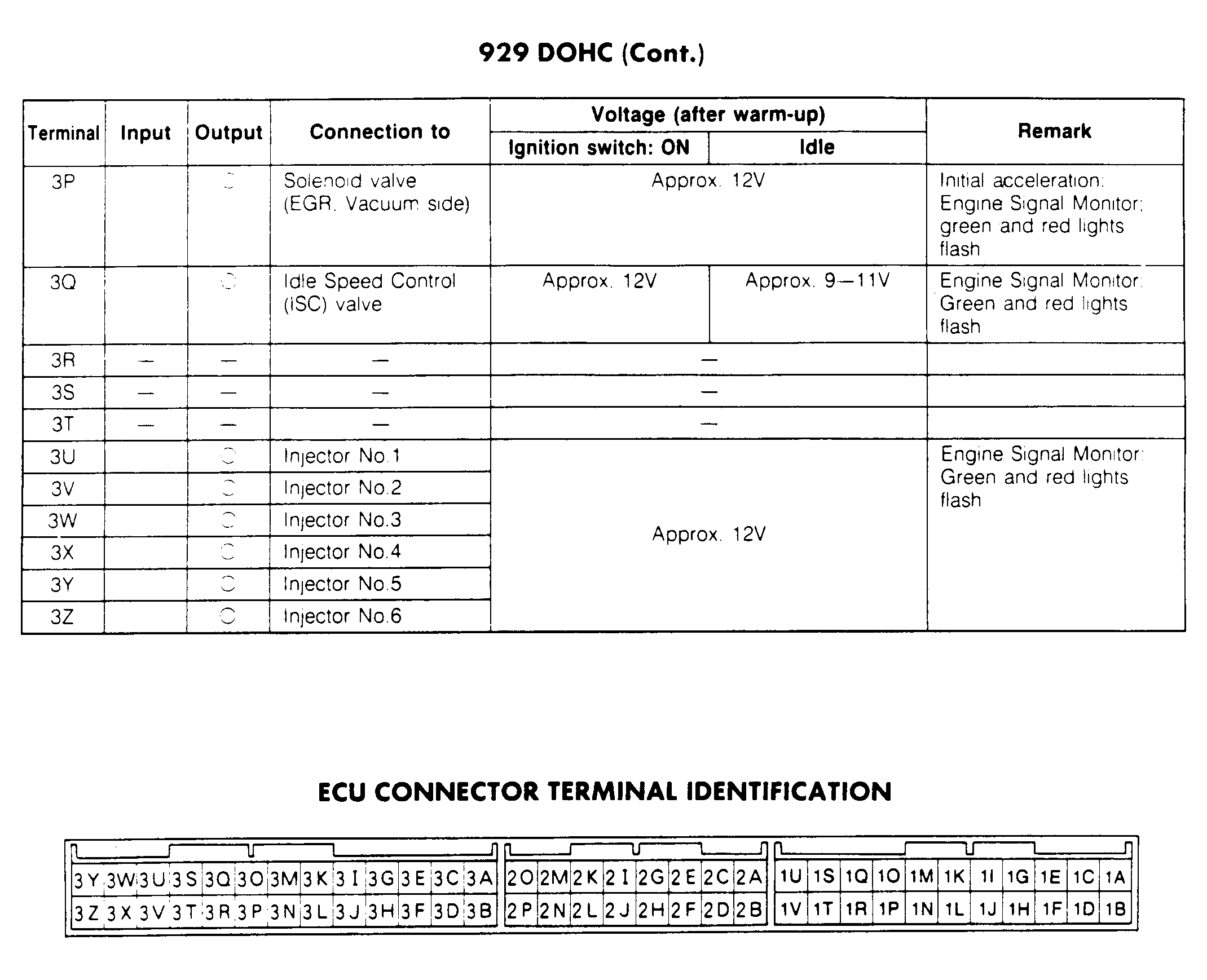

Fig 3: DOHC ECU Pin Voltage Chart & Terminal Id (3 of 3)

Courtesy of MAZDA MOTORS CORP.
