Ignition Advance Curve - MPV 3.0L

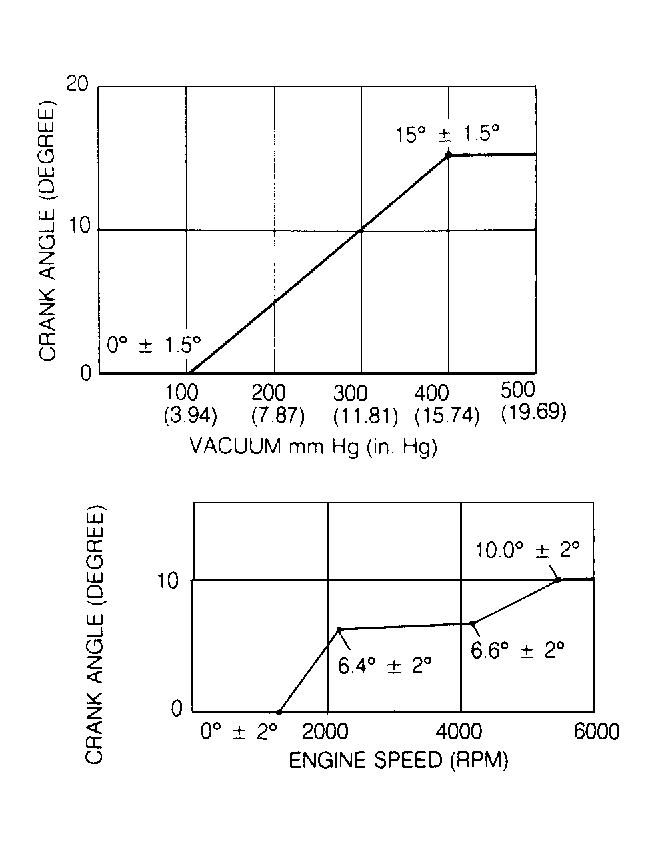

Fig 1: Ignition Advance Curve - MPV 3.0L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
