Crank Angle Sensor (RX7)

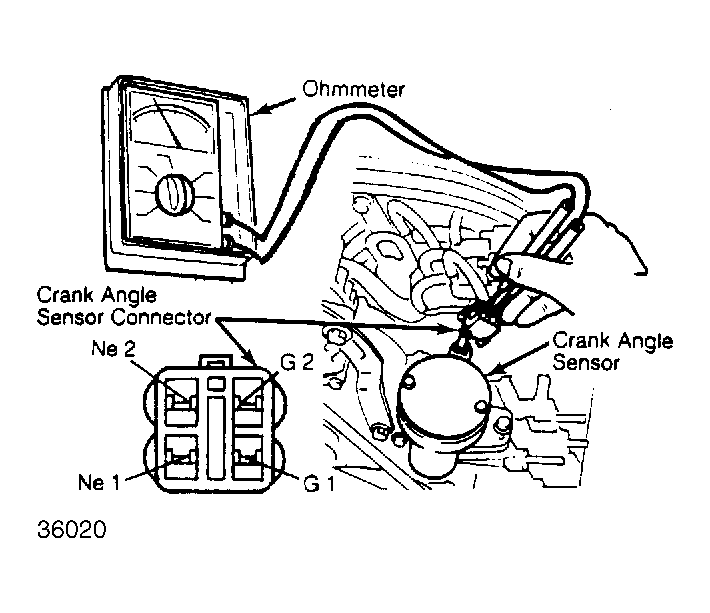

Remove sensor connector. Note terminal identification. See Fig 1 . Using ohmmeter, check resistance at specified terminals. See CRANK ANGLE SENSOR RESISTANCE SPECIFICATIONS (RX7) TABLE . Ensure resistance is within specifications.
CRANK ANGLE SENSOR RESISTANCE SPECIFICATIONS
| Application | Ohms | |||
|---|---|---|---|---|
| RX7 (1) | ||||
| G1 & G2 (Green & Black) | 110-210 | |||
| Ne1 & Ne2 (Red & White) | 110-210 | |||
|
||||
