Code 26: SOHC Purge Control Solenoid Valve

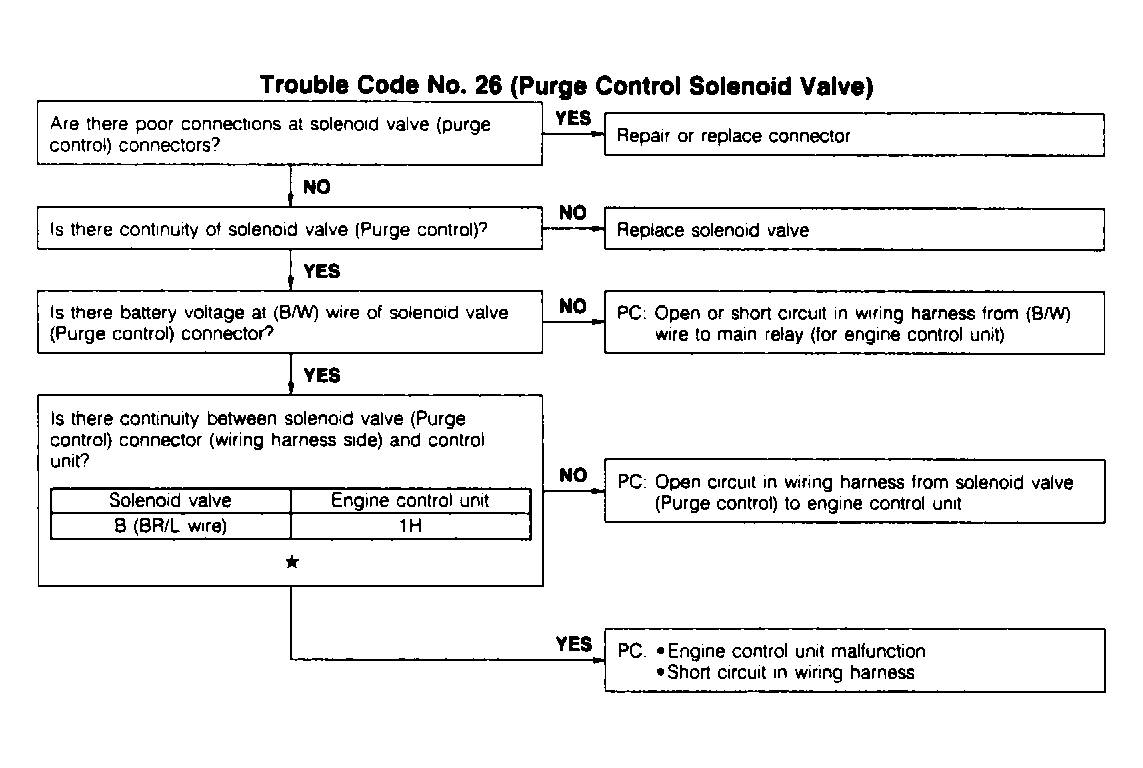

Fig 1: Code 26: Purge Control Solenoid Valve Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
