Caster Adjustment: MPV
Raise and support front of vehicle. Remove upper strut-to-body nuts. Push strut mounting block downward and turn to desired position. Reinstall and tighten nuts. See Figure.

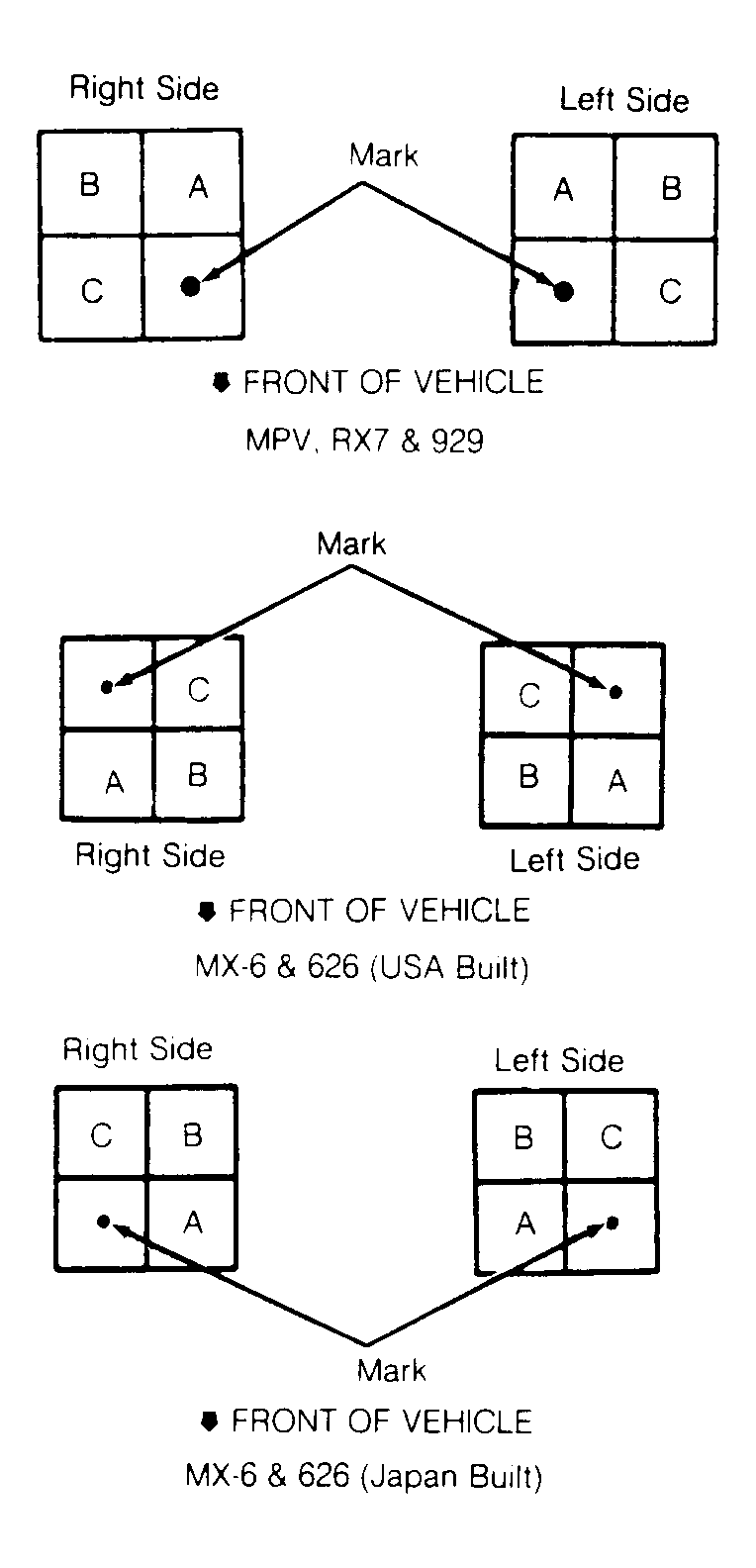

CASTER ADJUSTMENT (MPV)
| Mark | Change From Standard |
|---|---|
| A | 7/16° |
| B | 7/16° |
| C | 0° |
