Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Circuit Breaker Behind left kick panel, in center of fuse/relay block.
Fuse/Relay Blocks

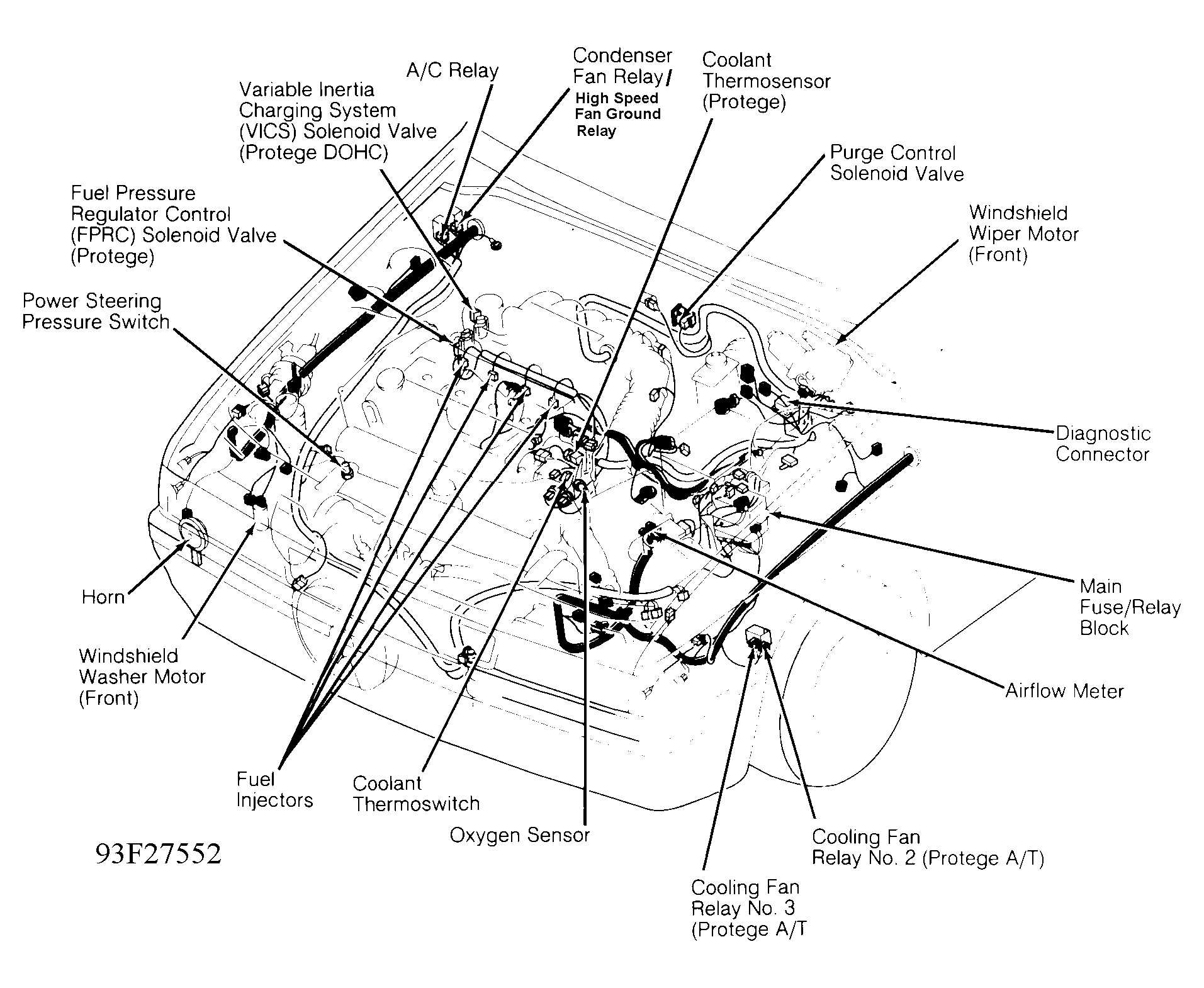

Engine Compartment (Main) On left side of engine compartment, on inner fender panel. See Figure .

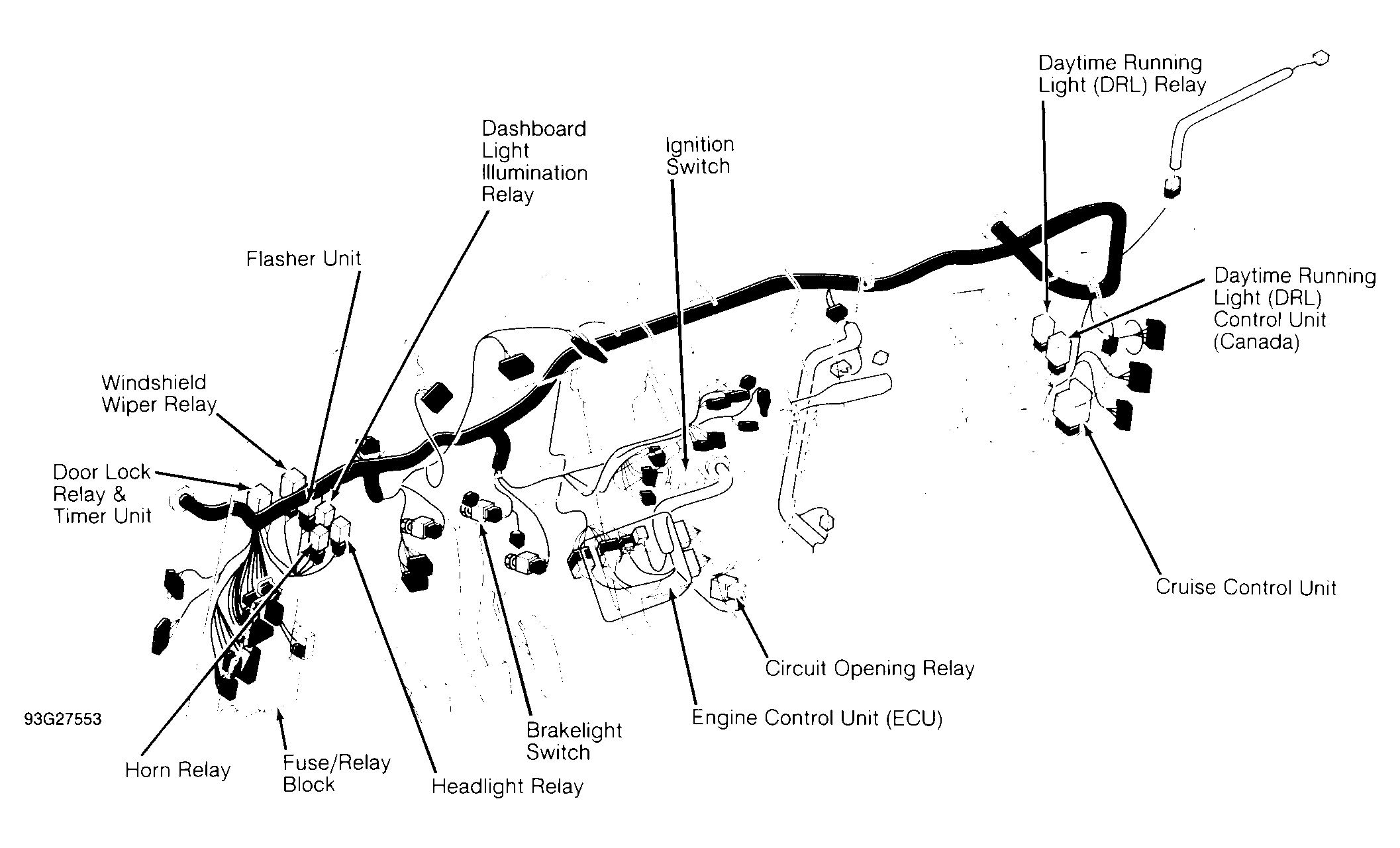

Passenger Compartment Behind left kick panel. See Figure .
Relay Bracket Behind left side of dash.
