Fuel System: Turbocharger: Reassembly
- To reassemble, reverse disassembly procedure. Install bearing assembly into turbine housing with outlet oil pipe parallel to mark. See Figure

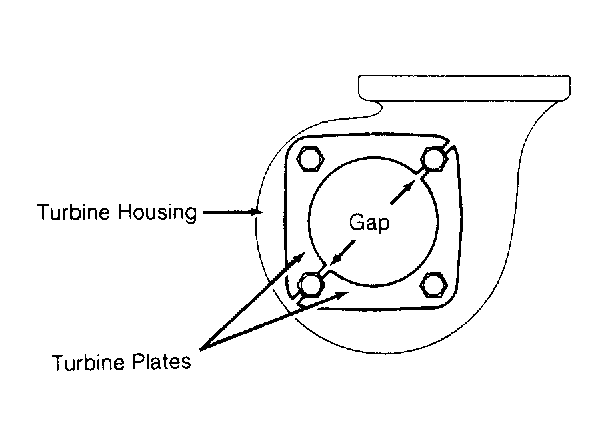

. To prevent heat distortion, install turbine plates as illustrated. See Fig 1
. Install compressor plates with rounded edge toward compressor housing.
- Remove old sealant from compressor housing (inward of sealing flange) and apply thin bead of NEW sealant. After reassembly, reach into compressor housing through inlet air opening. Rotate turbine wheel. If excessive load or noise exists or if wheel touches housing, replace turbocharger.
