Code 10: Intake Air THERMOSENSOR

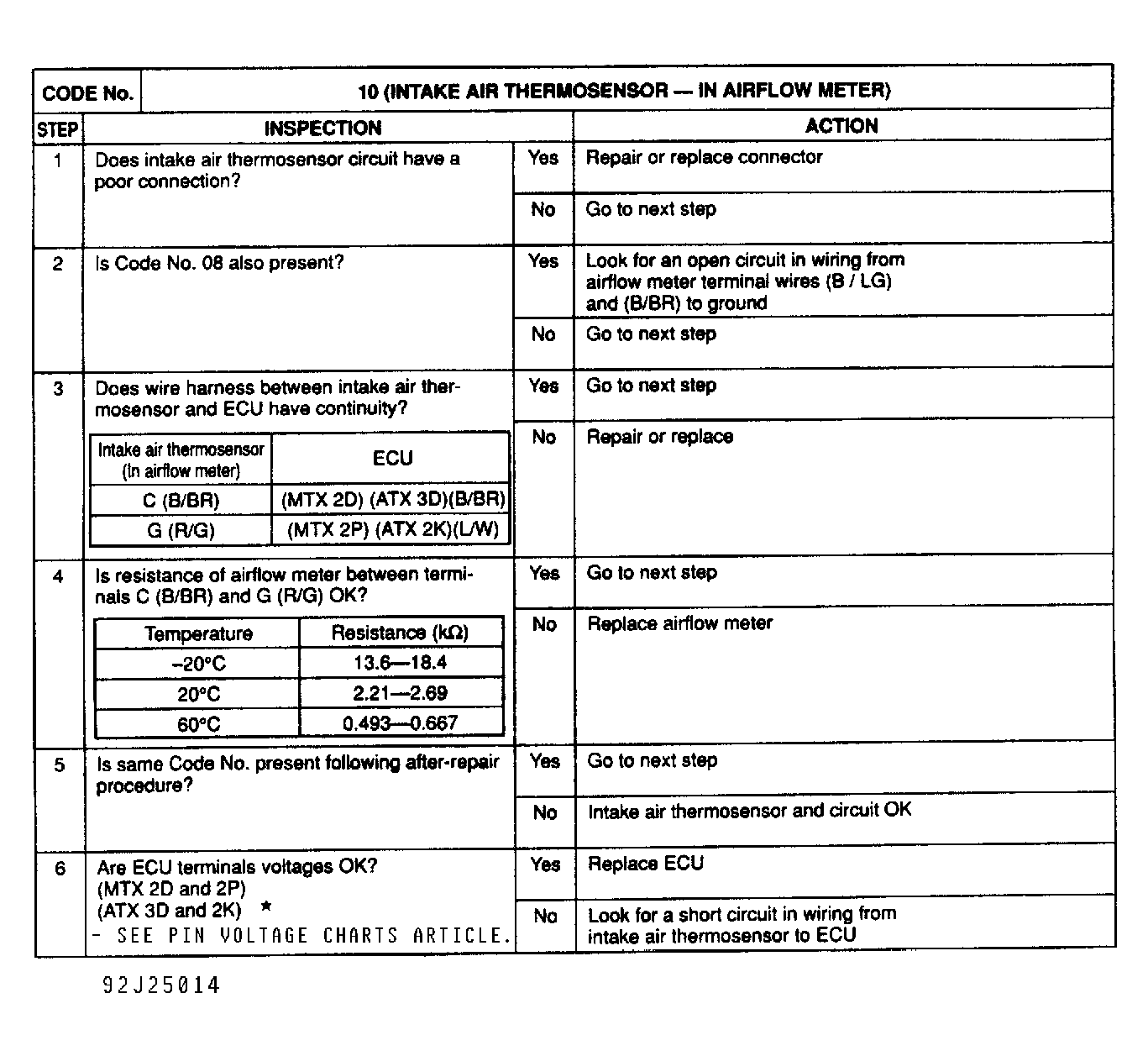

Fig 1: Trouble Code No. 10 Intake Air Thermosensor
G92J25014Courtesy of MAZDA MOTORS CORP.

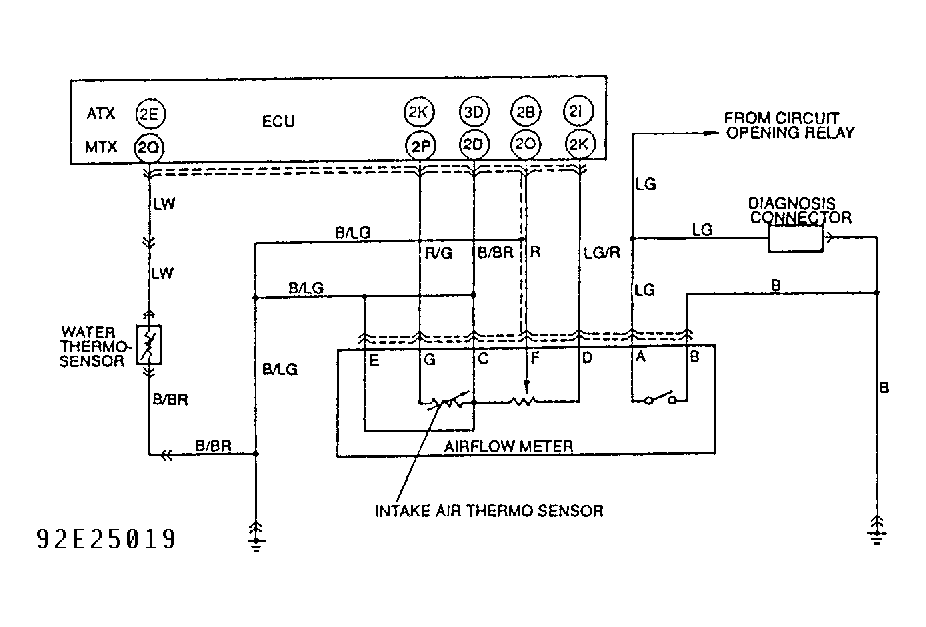

Fig 2: Circuit Diagram, Intake Air Thermosensor
G92E25019Courtesy of MAZDA MOTORS CORP.
