Code 15: Oxygen Sensor

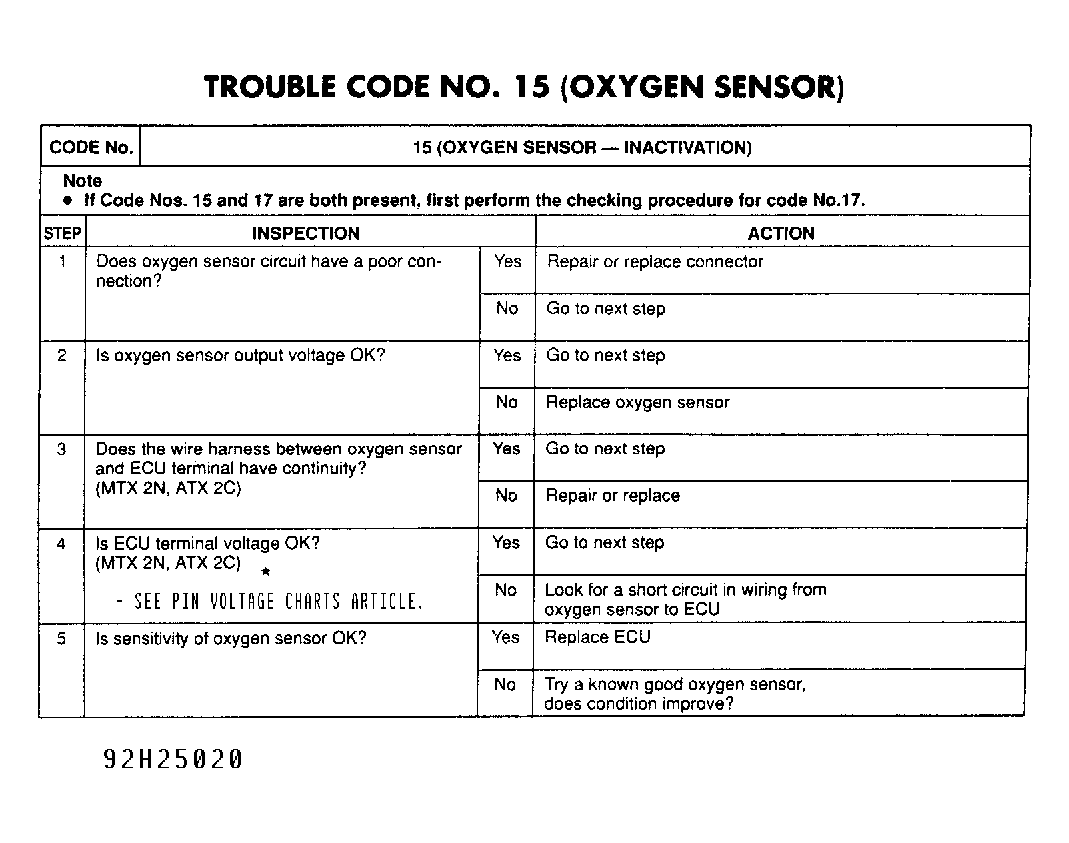

Fig 1: Trouble Code No. 15 Oxygen Sensor
G92H25020Courtesy of MAZDA MOTORS CORP.

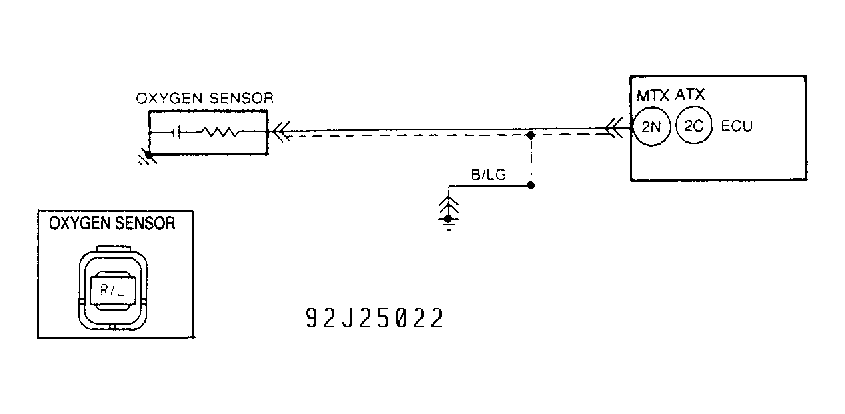

Fig 2: Circuit Diagram, Feedback System
G92J25022Courtesy of MAZDA MOTORS CORP.
