Code 17: Feedback System

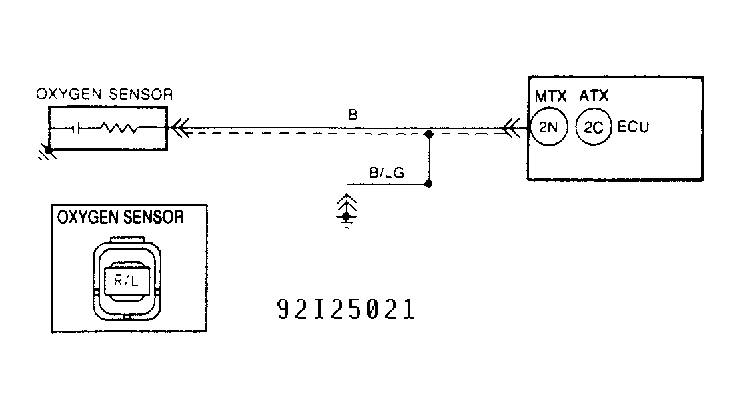

Fig 1: Circuit Diagram, Oxygen Sensor
G92I25021Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 17 Feedback System
G90G21515Courtesy of MAZDA MOTORS CORP.
