Code 2: Ne Signal-Distributor

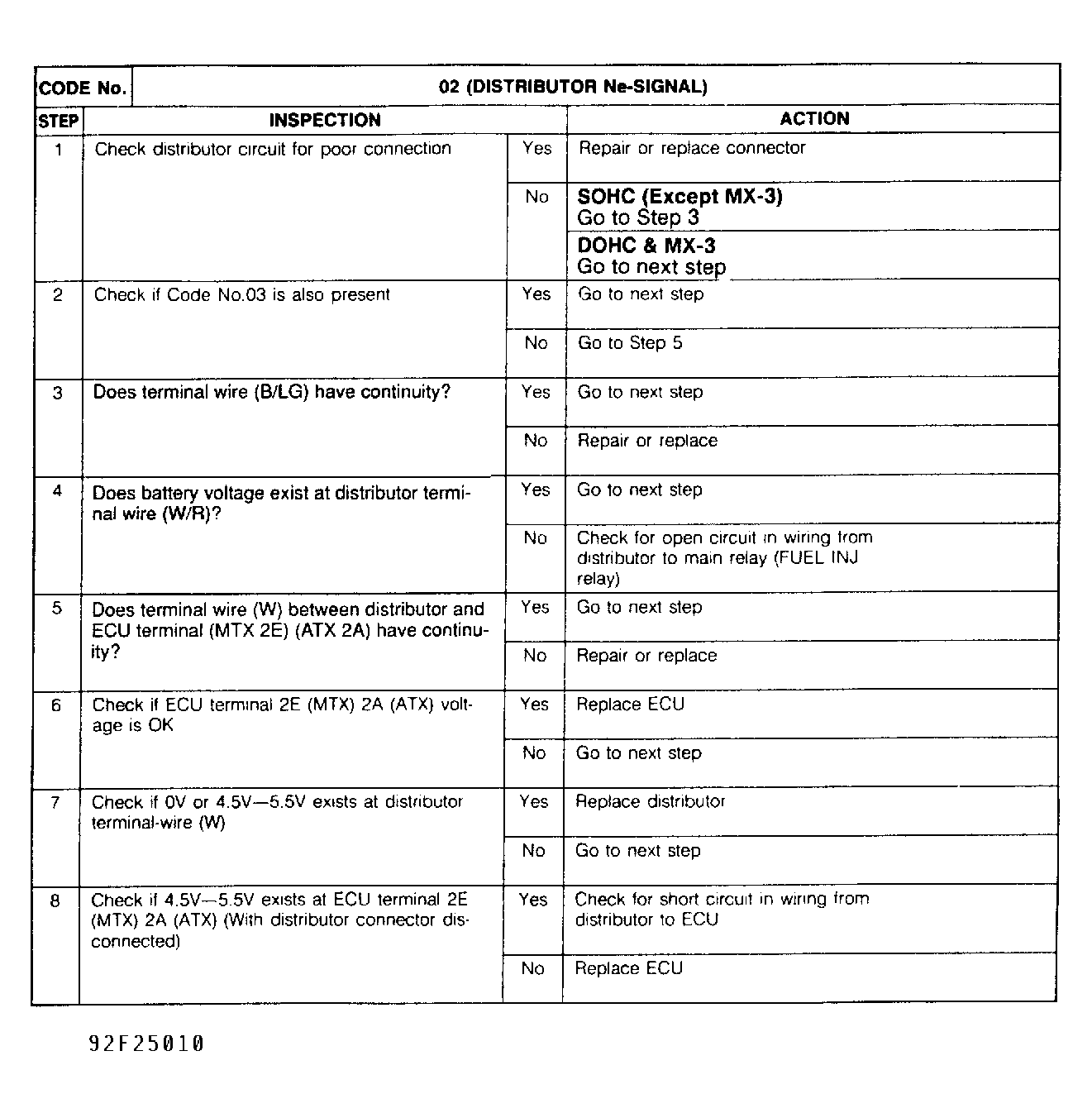

Fig 1: Trouble Code No. 2, Ne Signal-Distributor
G92F25010Courtesy of MAZDA MOTORS CORP.

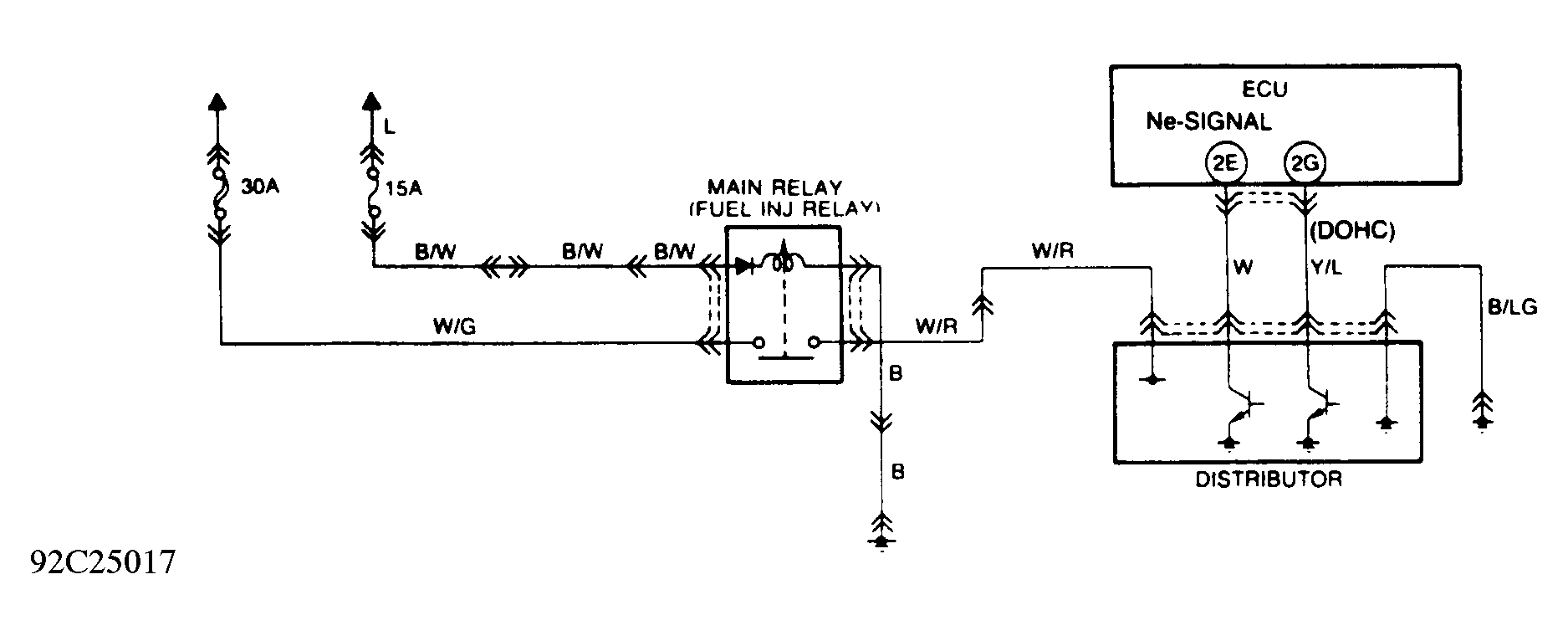

Fig 2: Circuit Diagram, Ne Signal-Distributor
G92C25017Courtesy of MAZDA MOTORS CORP.
