Code 8: Airflow Meter

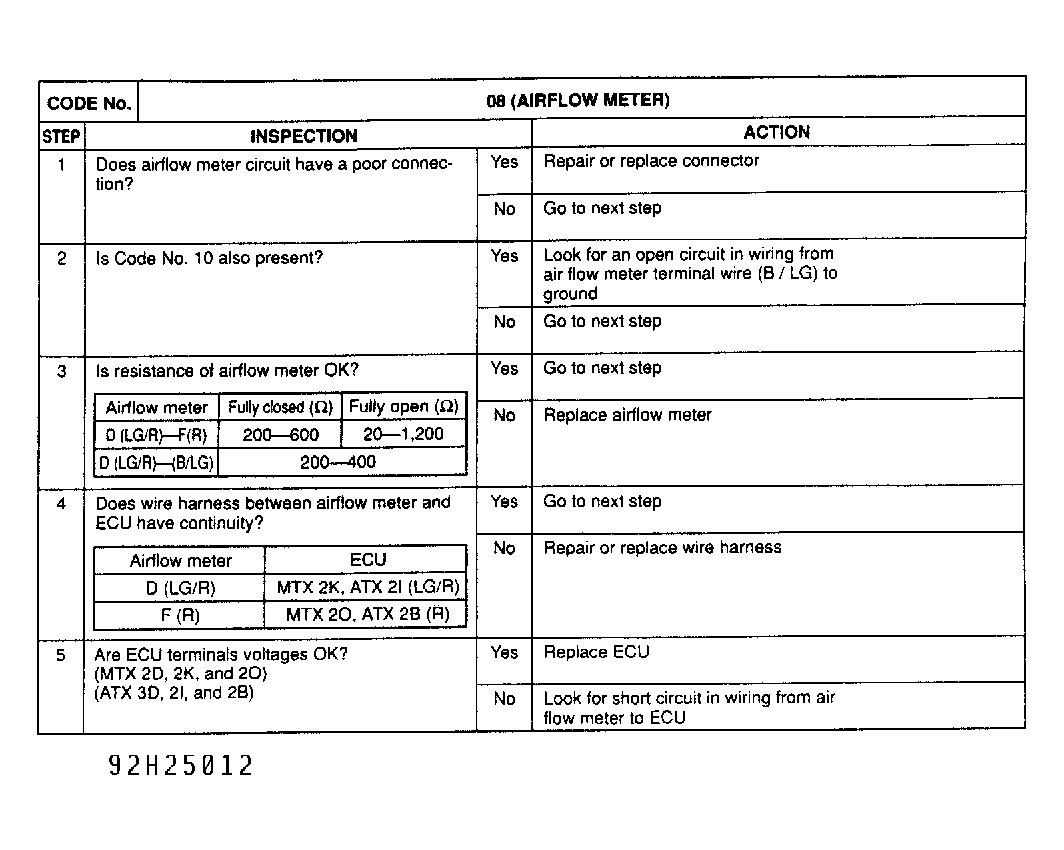

Fig 1: Trouble Code No. 8 Airflow Meter
G92H25012Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Airflow Meter
G92E25019Courtesy of MAZDA MOTORS CORP.
