Continuity Test (Miata)

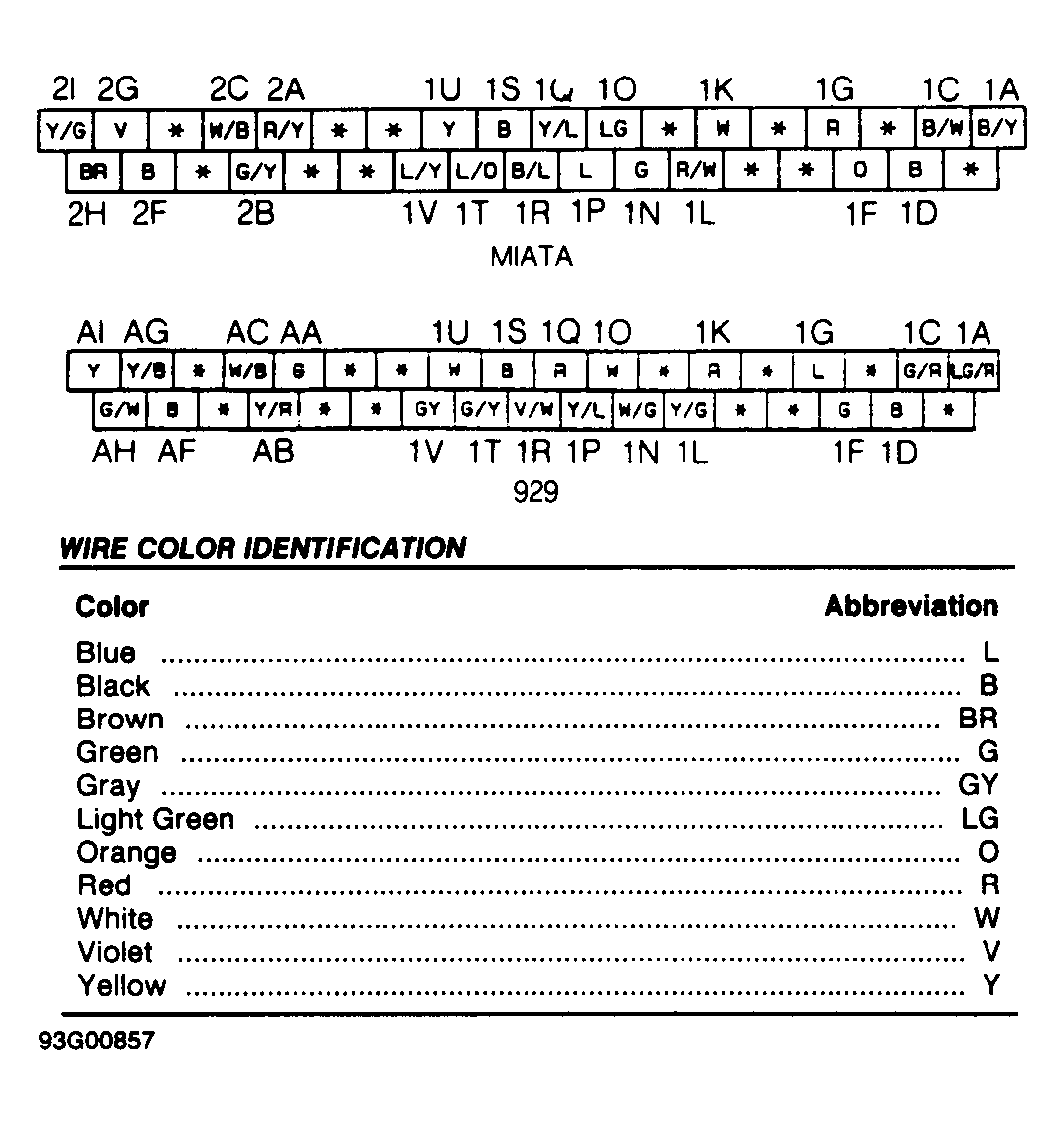

Using a DVOM, check for continuity between ground and following control unit connector terminals: 1D, 1S and 2F. See Figure . If continuity is not present, repair wiring harness.
