Ignition Timing: MPV

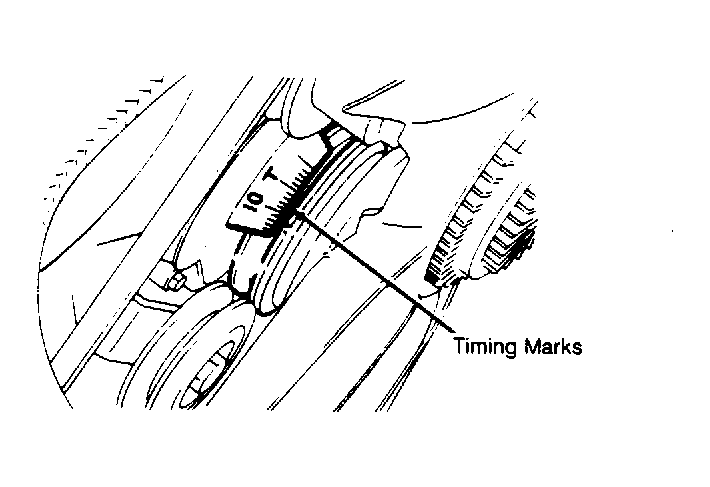

Connect jumper wire between ground and Green test connector in left front corner of engine compartment. See Fig 1 or Fig 2 . Connect timing light. Set timing to specification. See Figure . Refer to the IGNITION TIMING SPECIFICATIONS  table. Remove jumper wire.

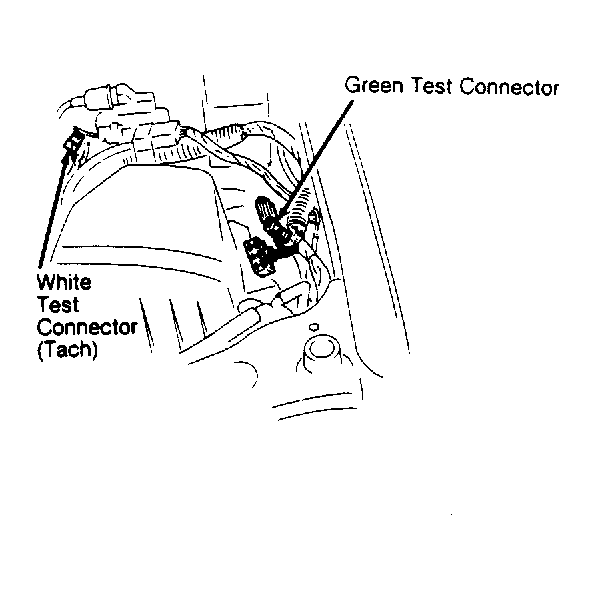

Fig 1: Locating Green & White Test Connectors (MPV 2.6L)

Courtesy of MAZDA MOTORS CORP.

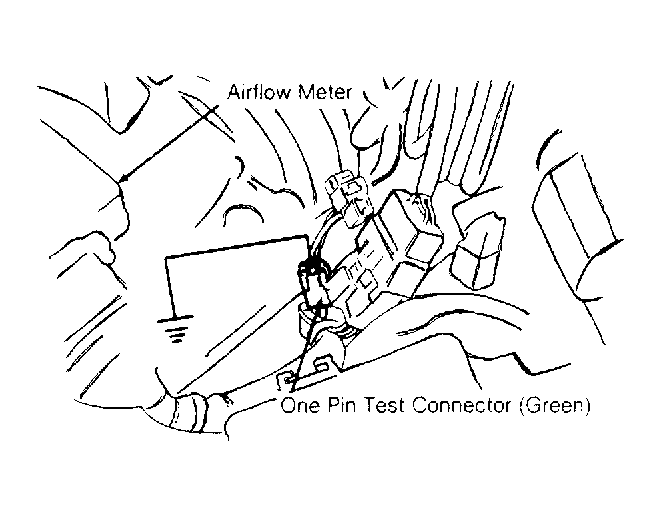

Fig 2: Locating Green Test Connector (MPV 3.0L)

Courtesy of MAZDA MOTORS CORP.
