Pin Voltage Charts

NOTE: All voltage tests should be performed with a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance, unless stated otherwise in testing procedures. Voltage readings may vary slightly due to battery condition or charging rate.

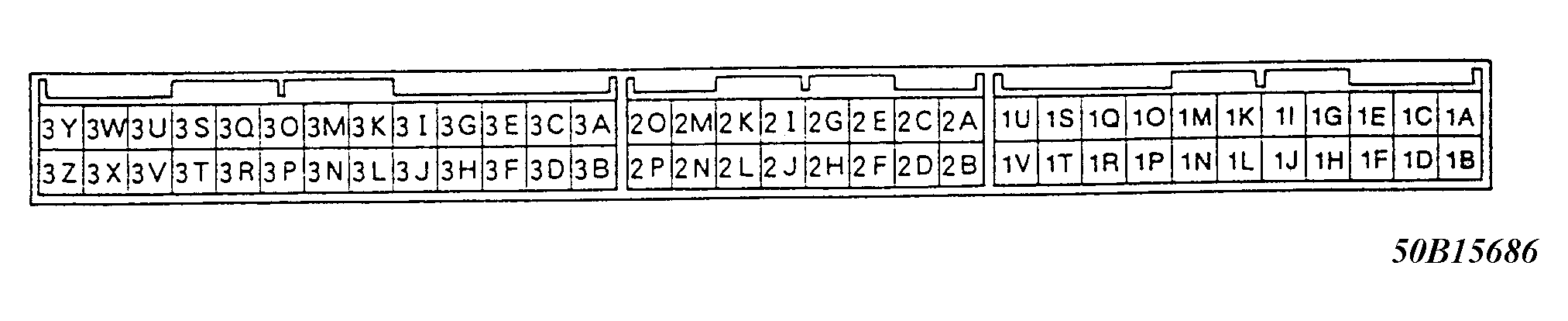

Fig 1: ECU Connector Terminal ID

Courtesy of MAZDA MOTORS CORP.

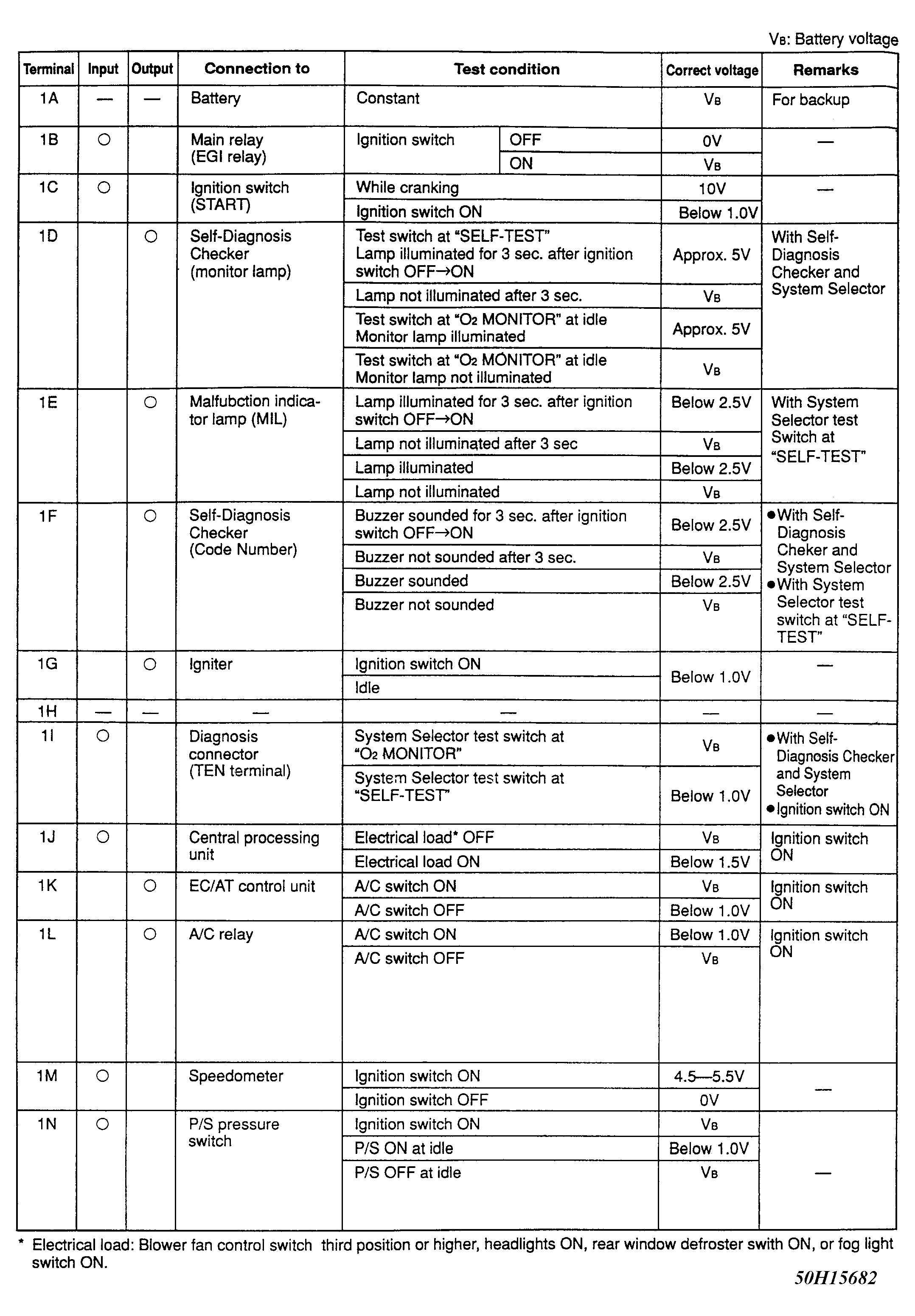

Fig 2: ECU Pin Voltage Chart (1 of 4)

Courtesy of MAZDA MOTORS CORP.

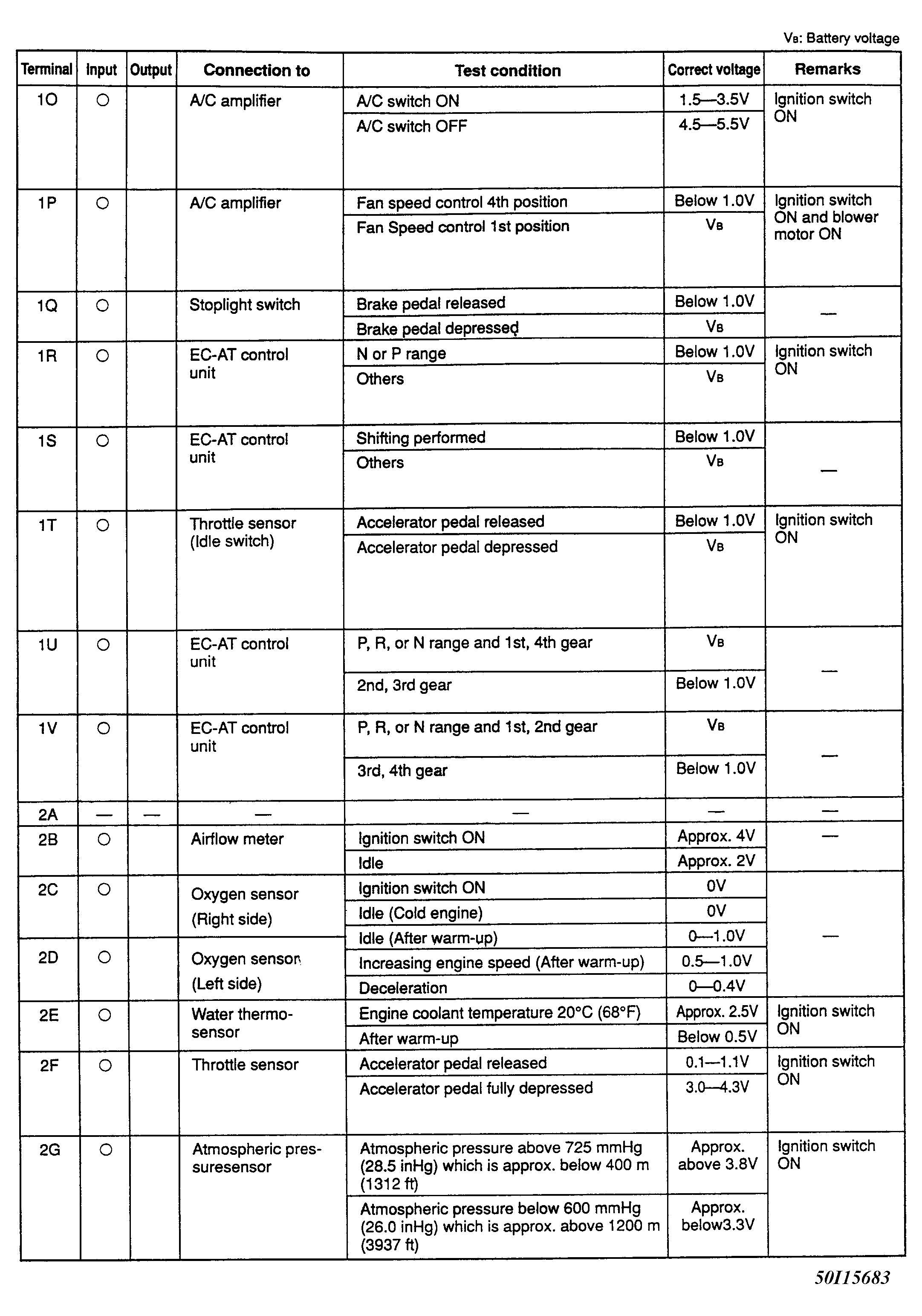

Fig 3: ECU Pin Voltage Chart (2 of 4)

Courtesy of MAZDA MOTORS CORP.

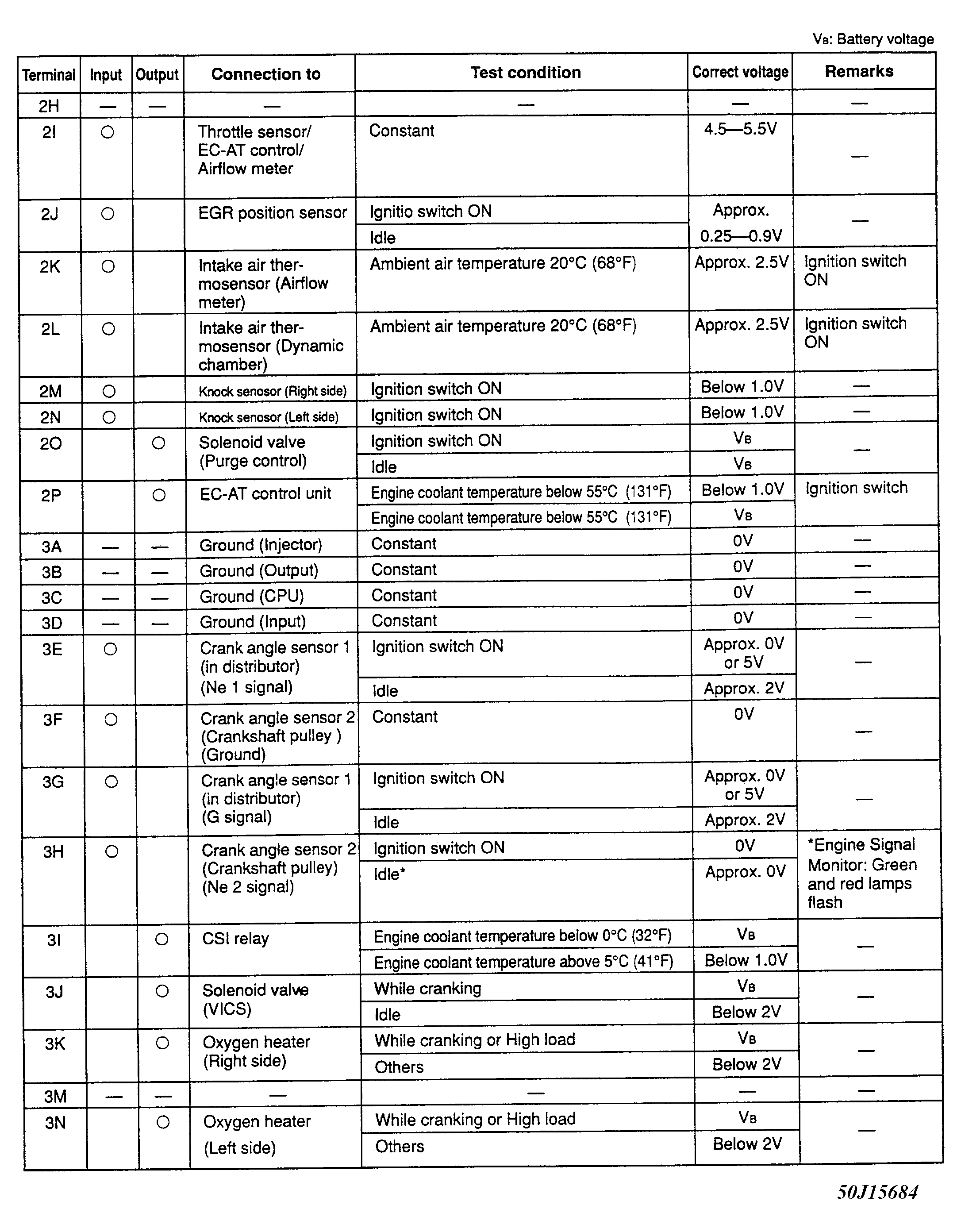

Fig 4: ECU Pin Voltage Chart (3 of 4)

Courtesy of MAZDA MOTORS CORP.

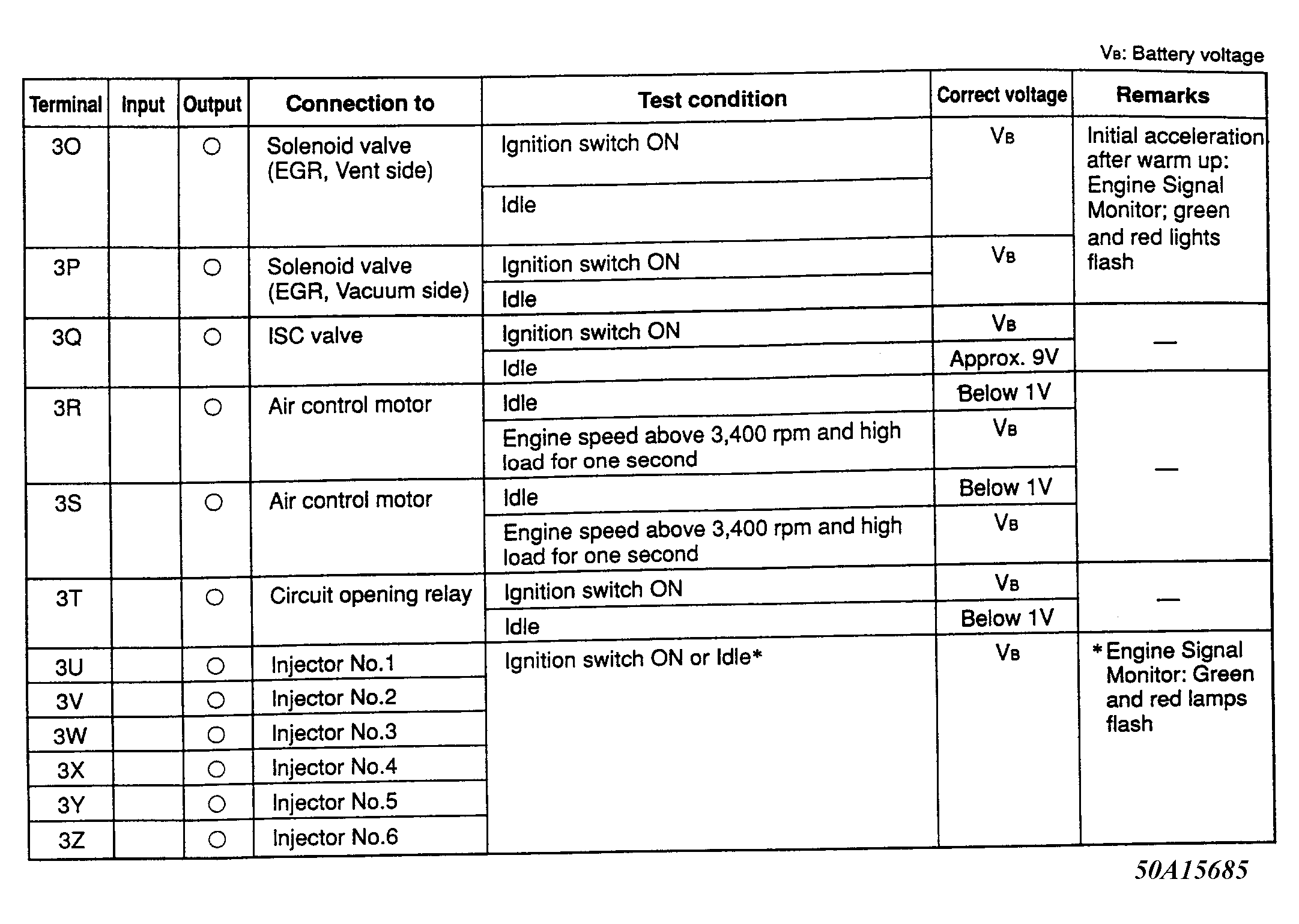

Fig 5: ECU Pin Voltage Chart (4 of 4)

Courtesy of MAZDA MOTORS CORP.
