Ignition Coil Resistance (MX-3 1.8L)
- Remove primary and secondary leads from ignition coil. Using ohmmeter, check primary resistance between terminals "A" and "C" of coil. See Fig 2 . Resistance should be as specified in IGNITION COIL RESISTANCE table. If resistance is not as specified, replace ignition coil.
- Check secondary resistance between terminal "C" and coil tower. See Fig 2 . See IGNITION COIL RESISTANCE table. If resistance is not within specifications, replace coil.
NOTE:
Figure 3 is Courtesy of Mazda Motors Corp.

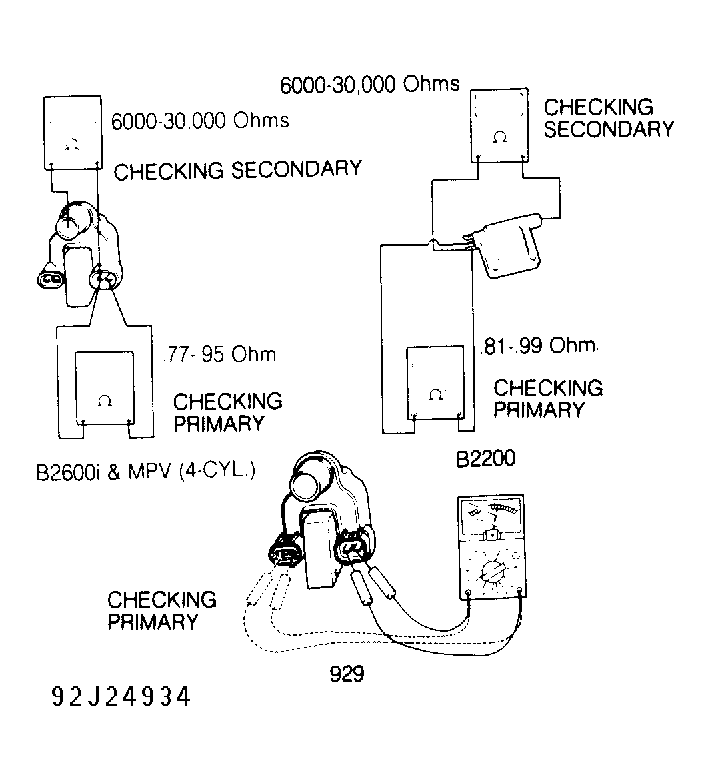

IGNITION COIL RESISTANCE
| Application | Primary | Secondary | ||||
|---|---|---|---|---|---|---|
| B2200 | ||||||
| Carbureted | 1.0-1.3 | 6000-30,000 | ||||
| PFI | .81-.99 | 6000-30,000 | ||||
| B2600i | ||||||
| Right Side | .77-.95 | 6000-30,000 | ||||
| Left Side | 900-1100 | N/A | ||||
| Miata | .78-.94 | 11,200-15,200 | ||||
| MPV | ||||||
| 2.6L (4-Cyl.) | ||||||
| Right Side | .77-.95 | 6000-30,000 | ||||
| Left Side | 900-1100 | N/A | ||||
| 3.0L (V6) | .81-.99 | 6000-30,000 | ||||
| MX-3 | ||||||
| 1.6L | .81-.99 | 10,300-16,000 | ||||
| 1.8L | .58-.86 | 11,500-18,500 | ||||
| MX-6 & 626 | ||||||
| Non-Turbo | .77-.95 | 10,300-13,900 | ||||
| Turbo | .72-.88 | 10,300-13,900 | ||||
| Navajo | .5 | (1) | ||||
| Protege & 323 | .81-.99 | 10,000-16,000 | ||||
| Left Side | .77-1.0 | 9000-17,000 | ||||
| Right Side | 900-1100 | N/A | ||||
|
||||||
