Power Window Motor

Using jumper leads, apply positive battery voltage to terminal "A" of power window motor connector and ground terminal "B". See Fig 1 . Motor should operate. Reverse jumper leads and ensure power window motor operates in reverse direction. If motor does not operate as specified, replace power window motor.

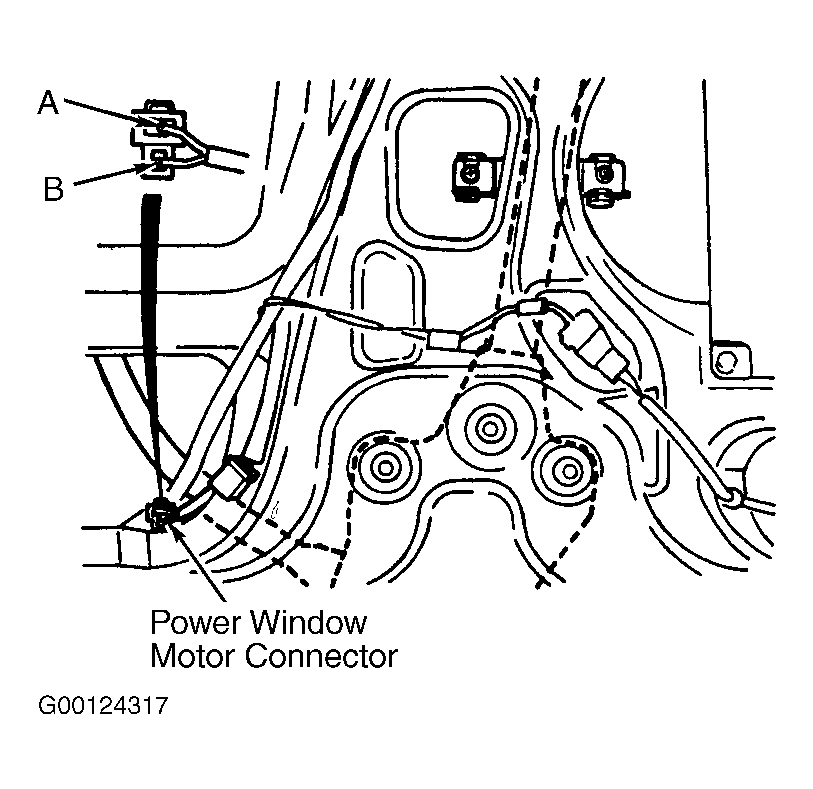

Fig 1: Testing Power Window Motor

Courtesy of MAZDA MOTORS CORP.
