Component Tests: Sub-Switch

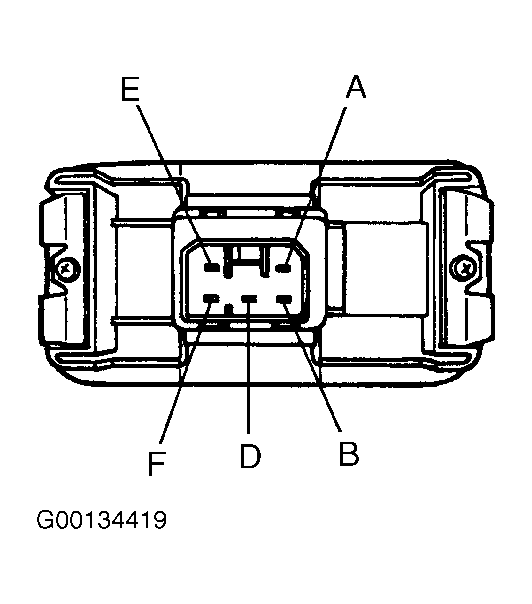

Remove sub-switch from vehicle. Using an ohmmeter, check continuity between specified switch terminals, with switch in specified positions. See TESTING SUB-SWITCH CONTINUITY table and Fig 1 . If continuity is not as specified, replace sub-switch.
TESTING SUB-SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals |
|---|---|
| Up | "A" & "E"; "B" & "D" |
| Off | "A" & "E"; "D" & "F" |
| Down | "B" & "E"; "D" & "F" |
