Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block Behind left side of dash.
Main Fuse Block

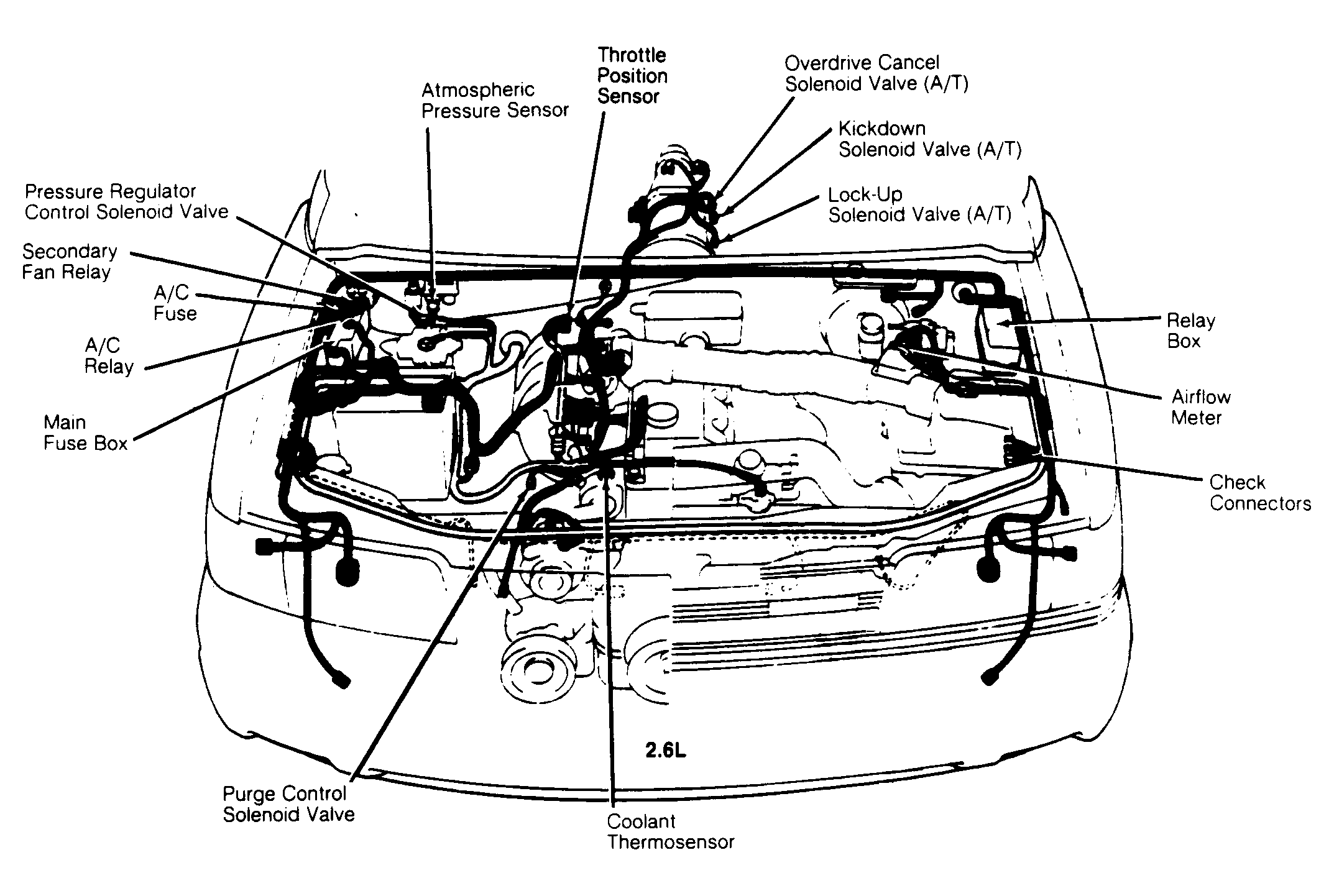

Engine Compartment (2.6L) On right rear of right engine compartment, on inner fender panel. See Figure .

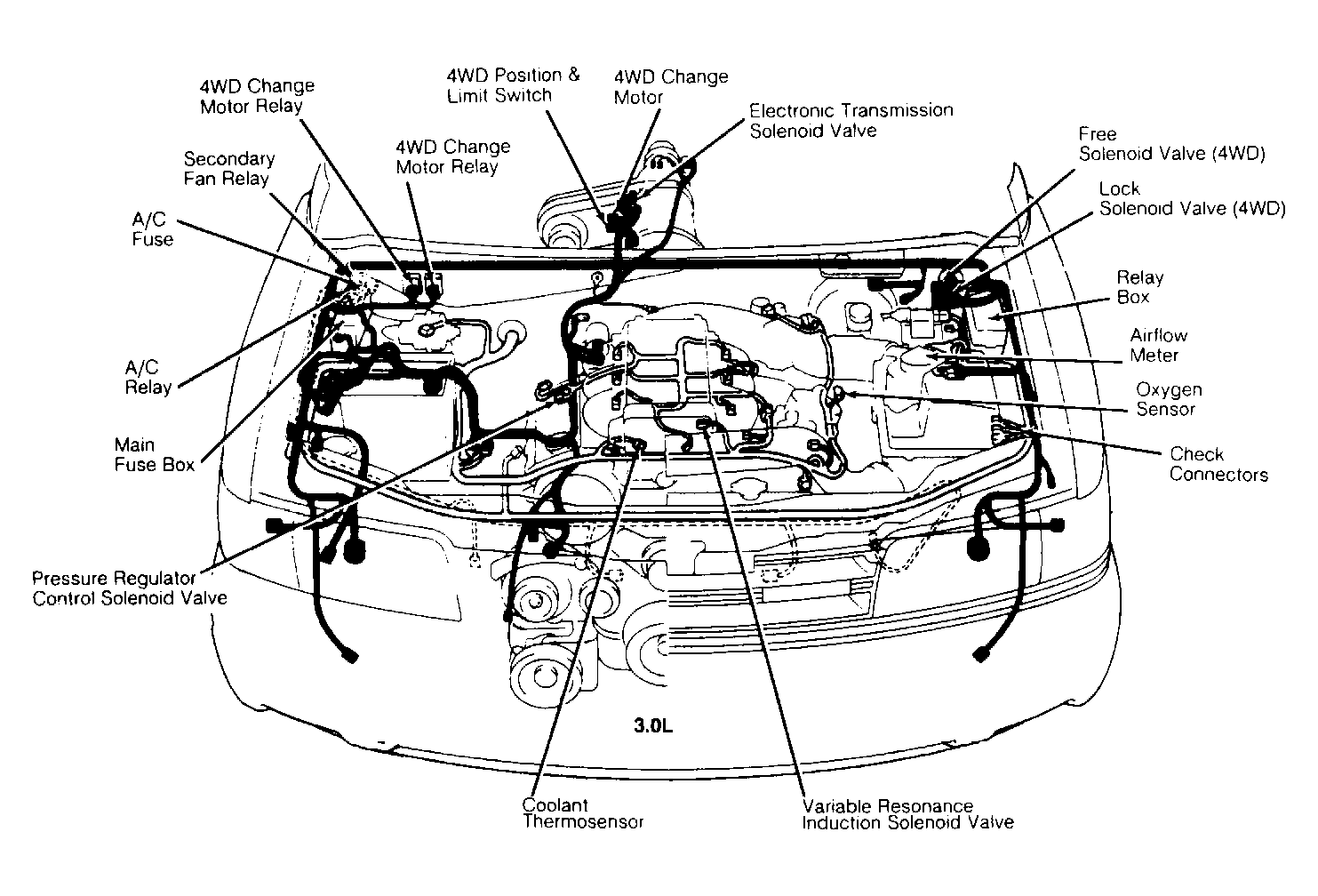

Engine Compartment (3.0L) On right rear of right engine compartment, on inner fender panel. See Figure .
Relay Block
Engine Compartment (2.6L) On left side of engine compartment, on inner fender panel. See Figure .
Engine Compartment (3.0L) On left side of engine compartment, on inner fender panel. See Figure .
