Code 1: Ignition Pulse

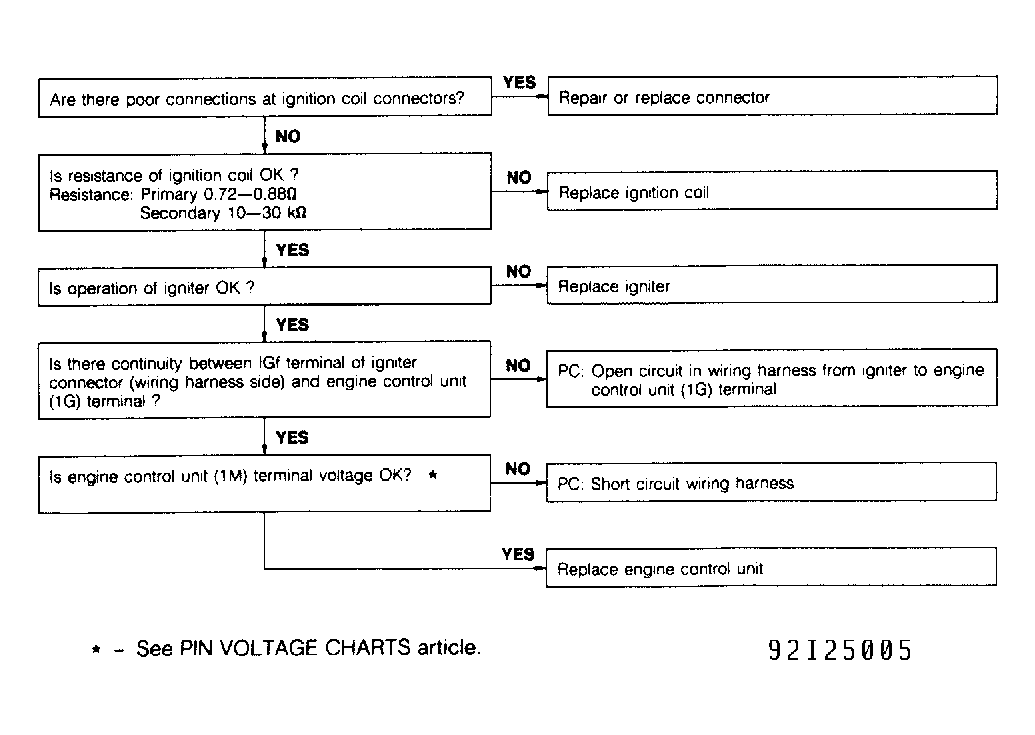

Fig 1: Trouble Code No. 1, Ignition Pulse

G92I25005

Courtesy of MAZDA MOTORS CORP.
