Code 12: Throttle Sensor

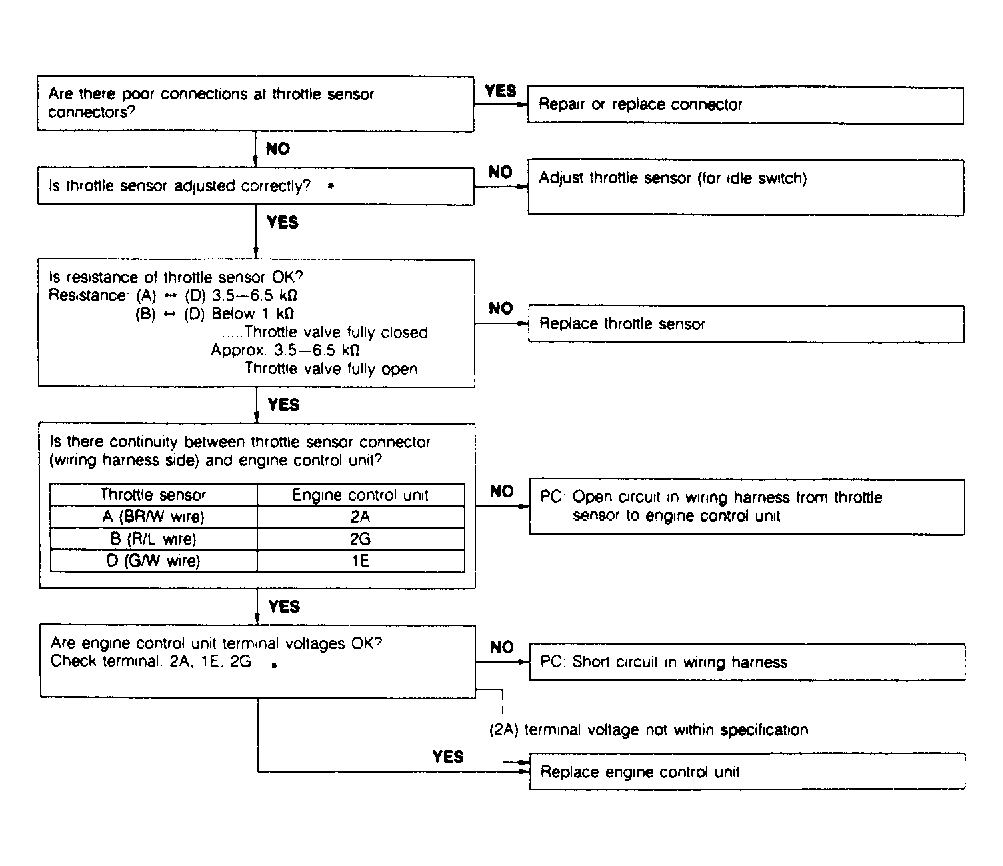

Fig 1: Trouble Code No. 12, Throttle Sensor
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
