Distributor Specifications

NOTE: On models with computer-controlled ignition, see appropriate TESTS W/CODES article to diagnose ignition timing problems.

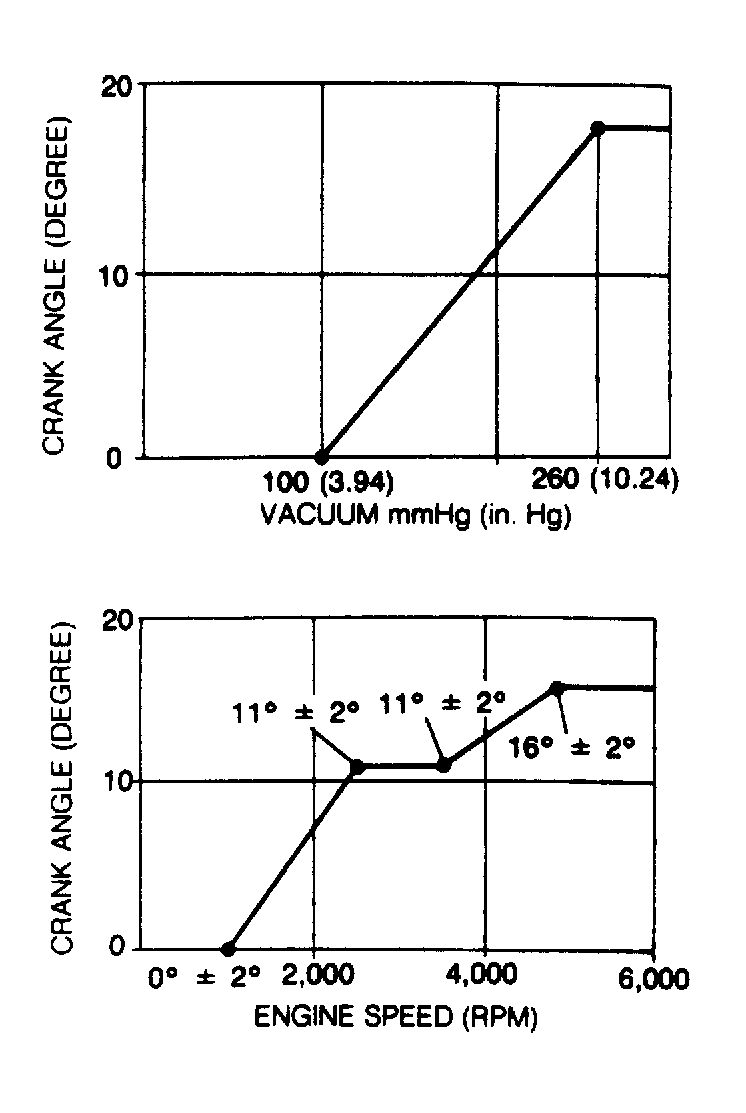

Fig 1: Ignition Advance Curve (B2200 Carbureted)

Courtesy of MAZDA MOTORS CORP.
