Ignition System: Distributor

Refer to appropriate illustration when removing, overhauling or installing distributor. See Fig 1 -Fig 7 .

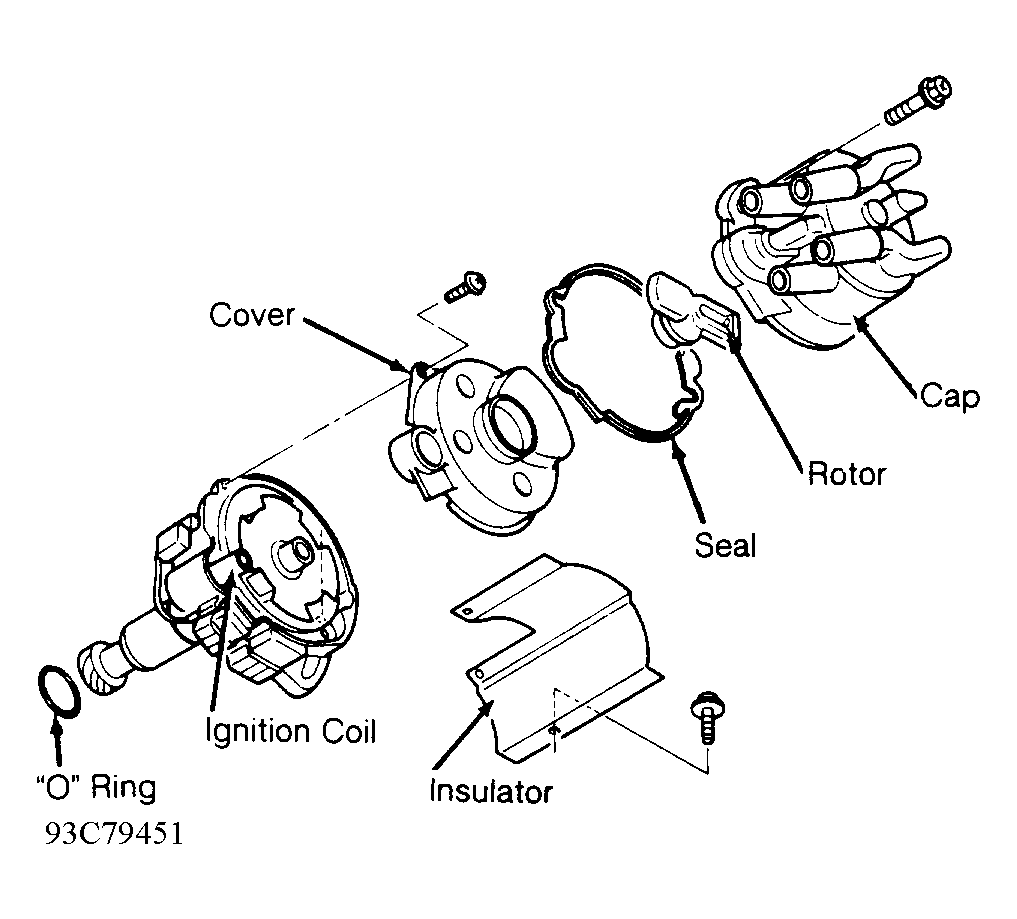

Fig 1: Exploded View Of Distributor (B2200 Carbureted)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Exploded View Of Distributor (B2200 PFI, B2600i, MPV 2.6L, Protege & 323)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Exploded View Of Distributor (MPV 3.0L)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Exploded View Of Distributor (MX-3 1.6L)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Exploded View Of Distributor (MX-3 1.8L, MX-6 2.5L & 626 2.5L)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Exploded View Of Distributor (MX-6 2.0L & 626 2.0L)

Courtesy of MAZDA MOTORS CORP.

Fig 7: Exploded View Of Distributor (929)

Courtesy of MAZDA MOTORS CORP.
