Code 15 & 23: (Left/Right Side Oxygen Sensor)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 15 & 23: (Left/Right Side Oxygen Sensor)

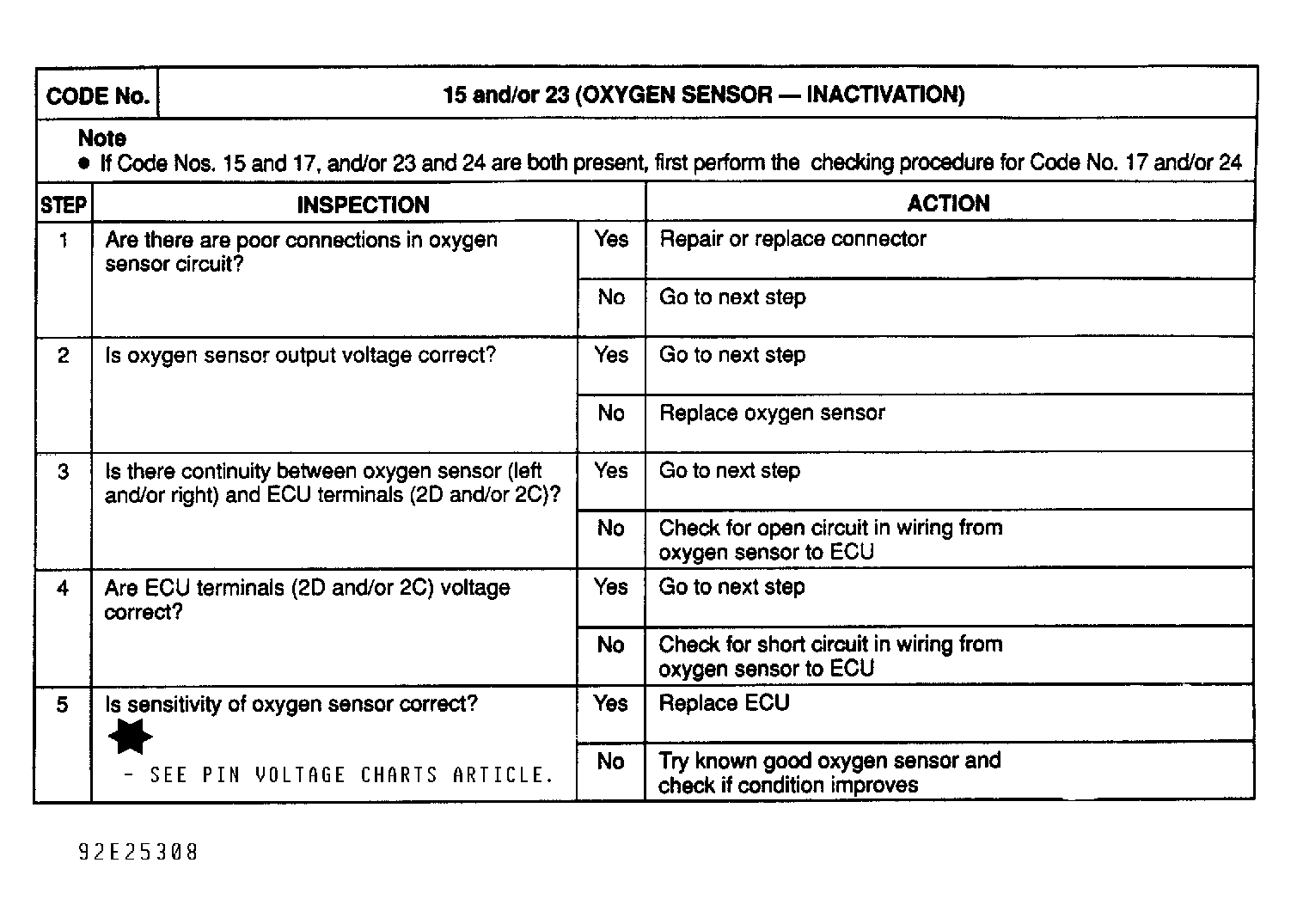

Fig 1: Trouble Code No. 15/23 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
