Code 17 & 24: (Left/Right Side Feedback System)

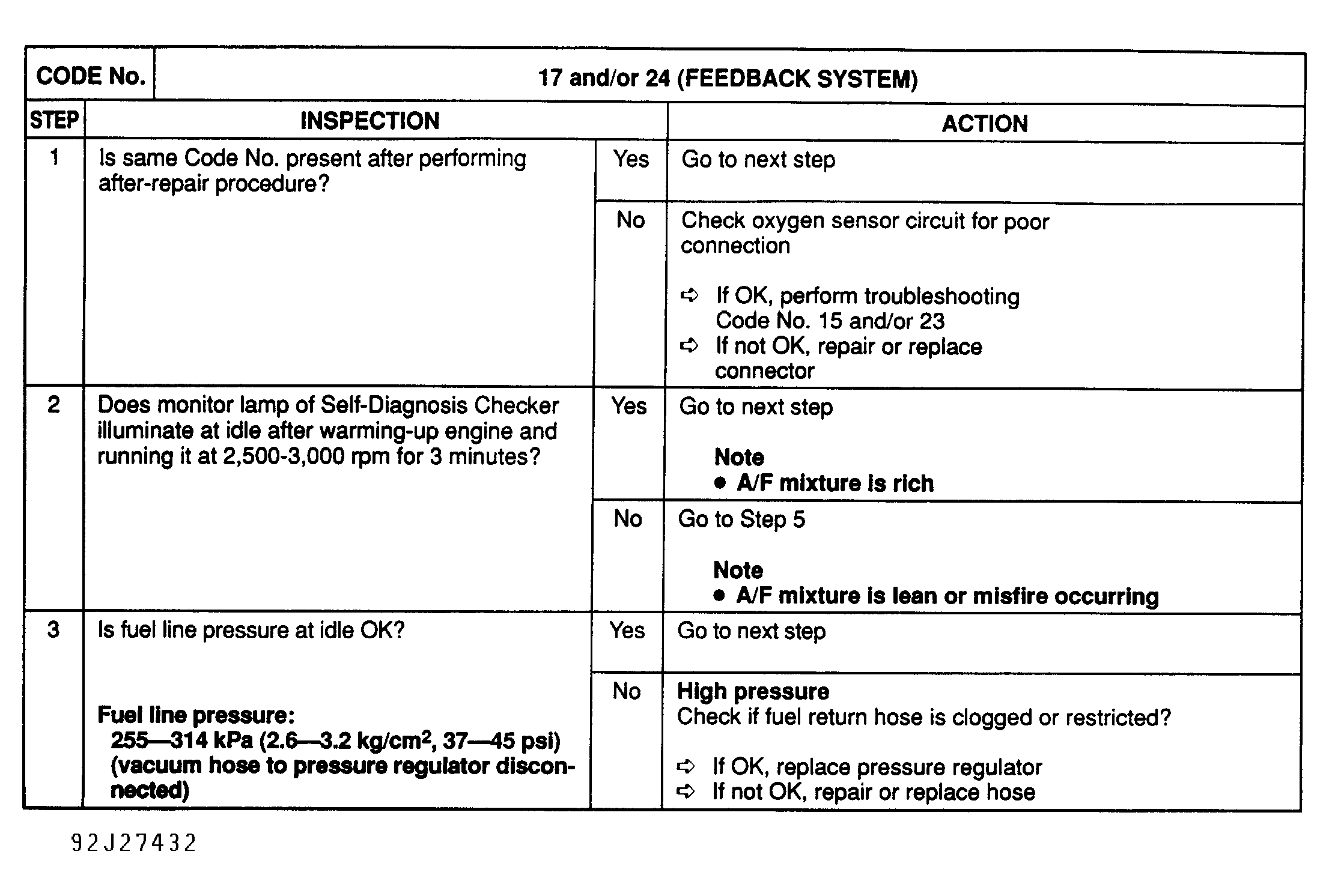

Fig 1: Trouble Code No. 17/24 - Diagnostic Flowchart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

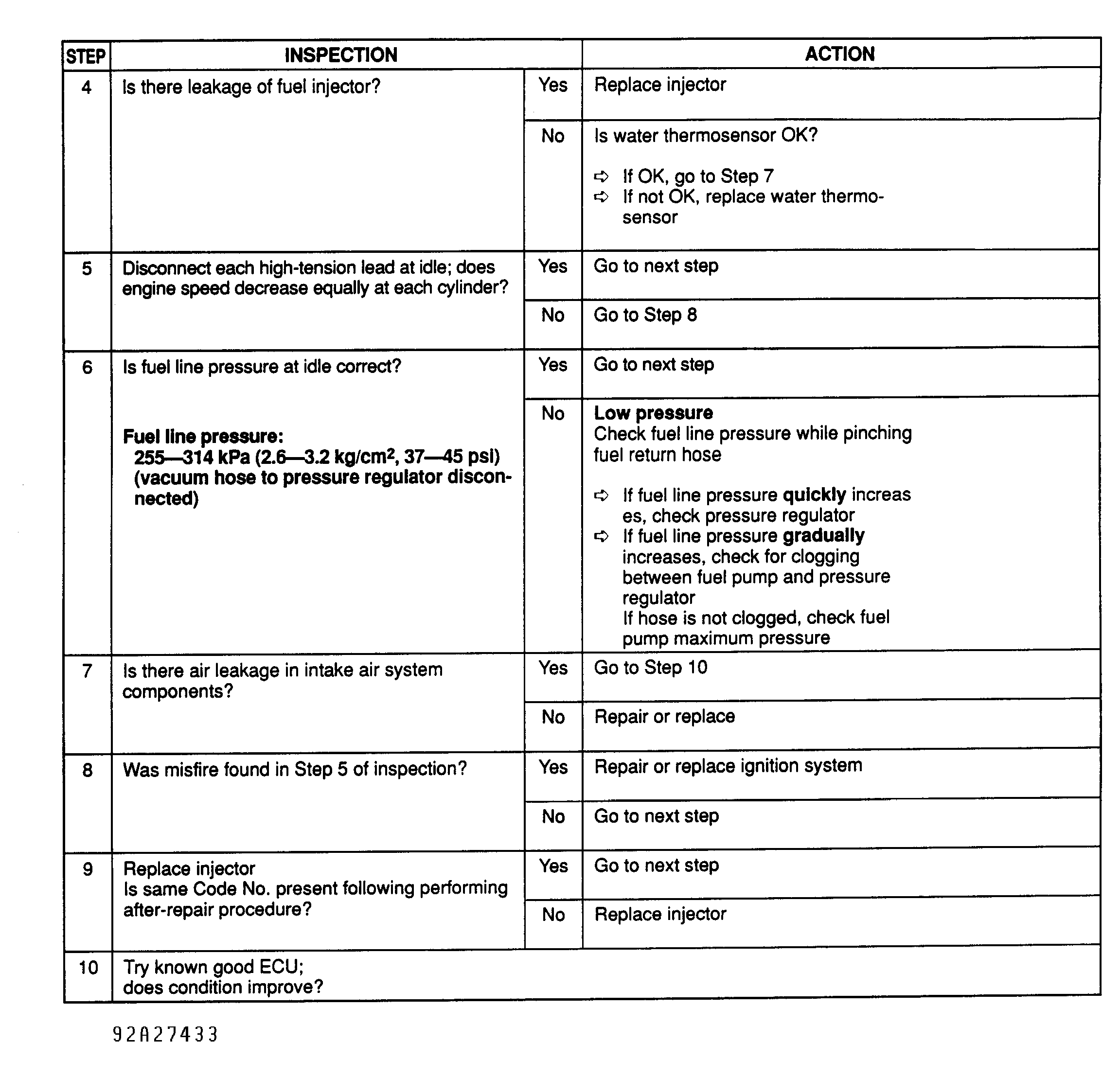

Fig 2: Trouble Code No. 17/24 - Diagnostic Flowchart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
