Code 2: (Crankshaft Position Sensor - Ne2 Signal)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 2: (Crankshaft Position Sensor - Ne2 Signal)

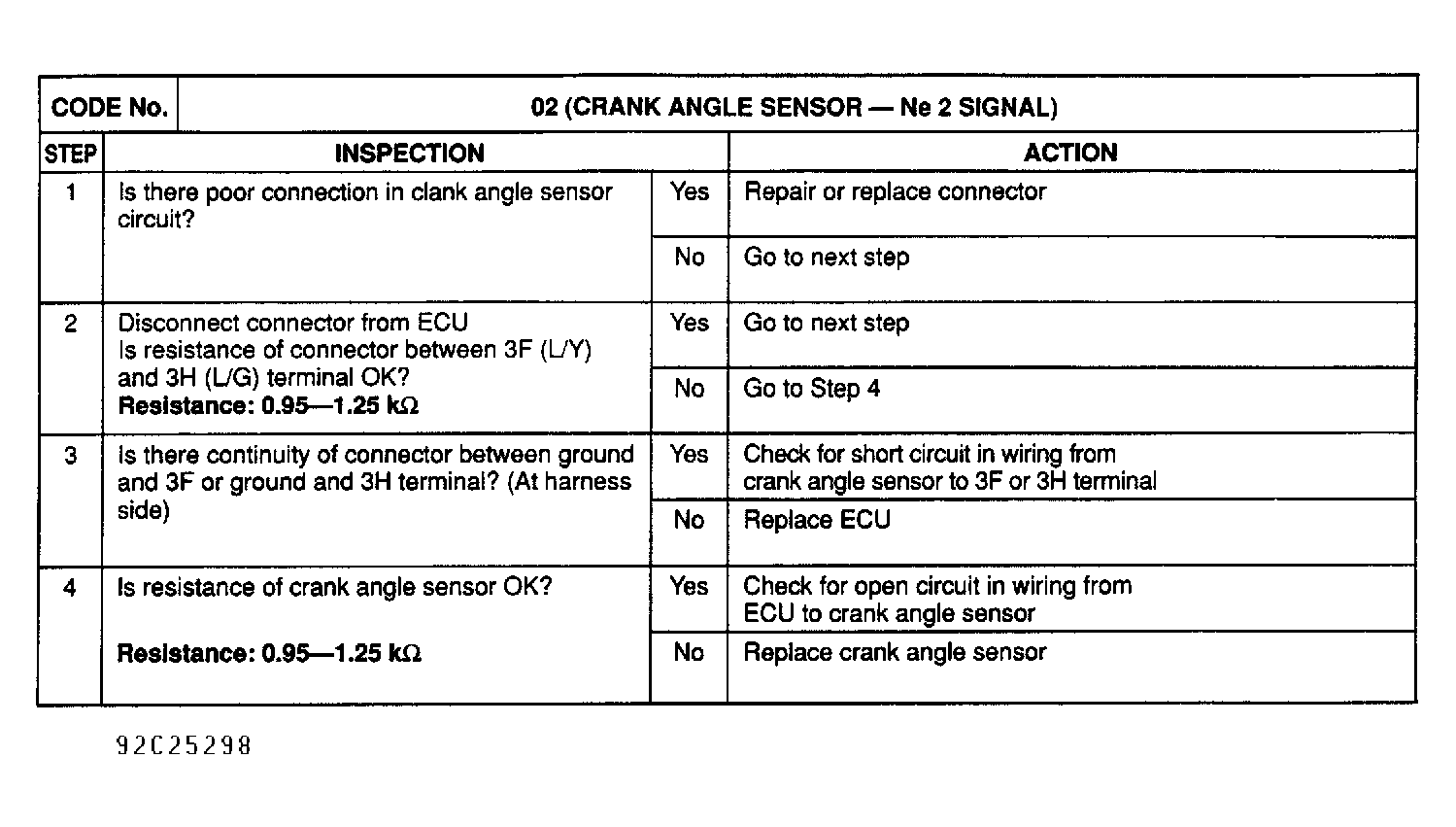

Fig 1: Trouble Code No. 2 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
