Code 29: (EGR Vent Solenoid Valve)

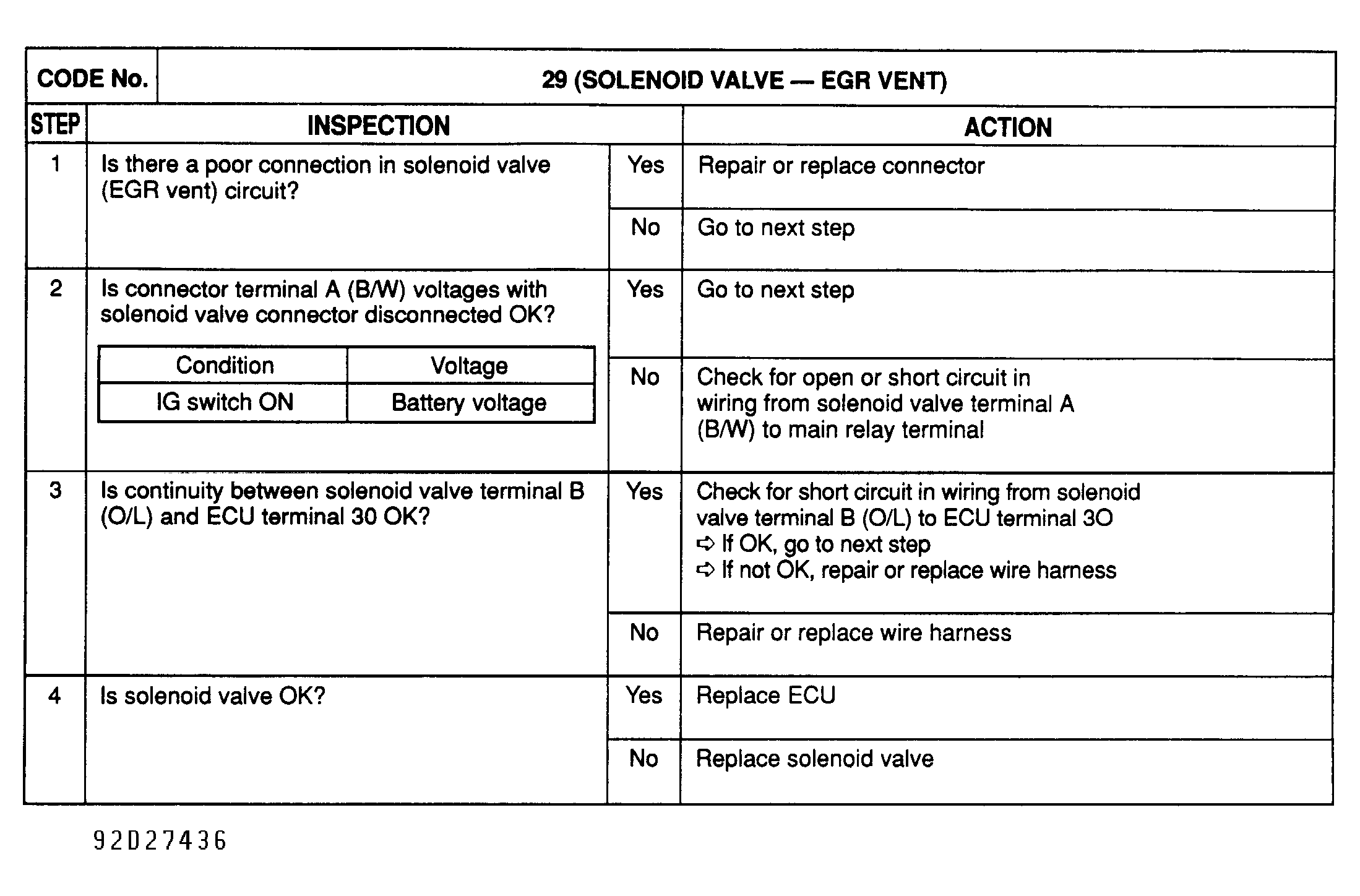

Fig 1: Trouble Code No. 29 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
