Code 34: (Idle Speed Control)

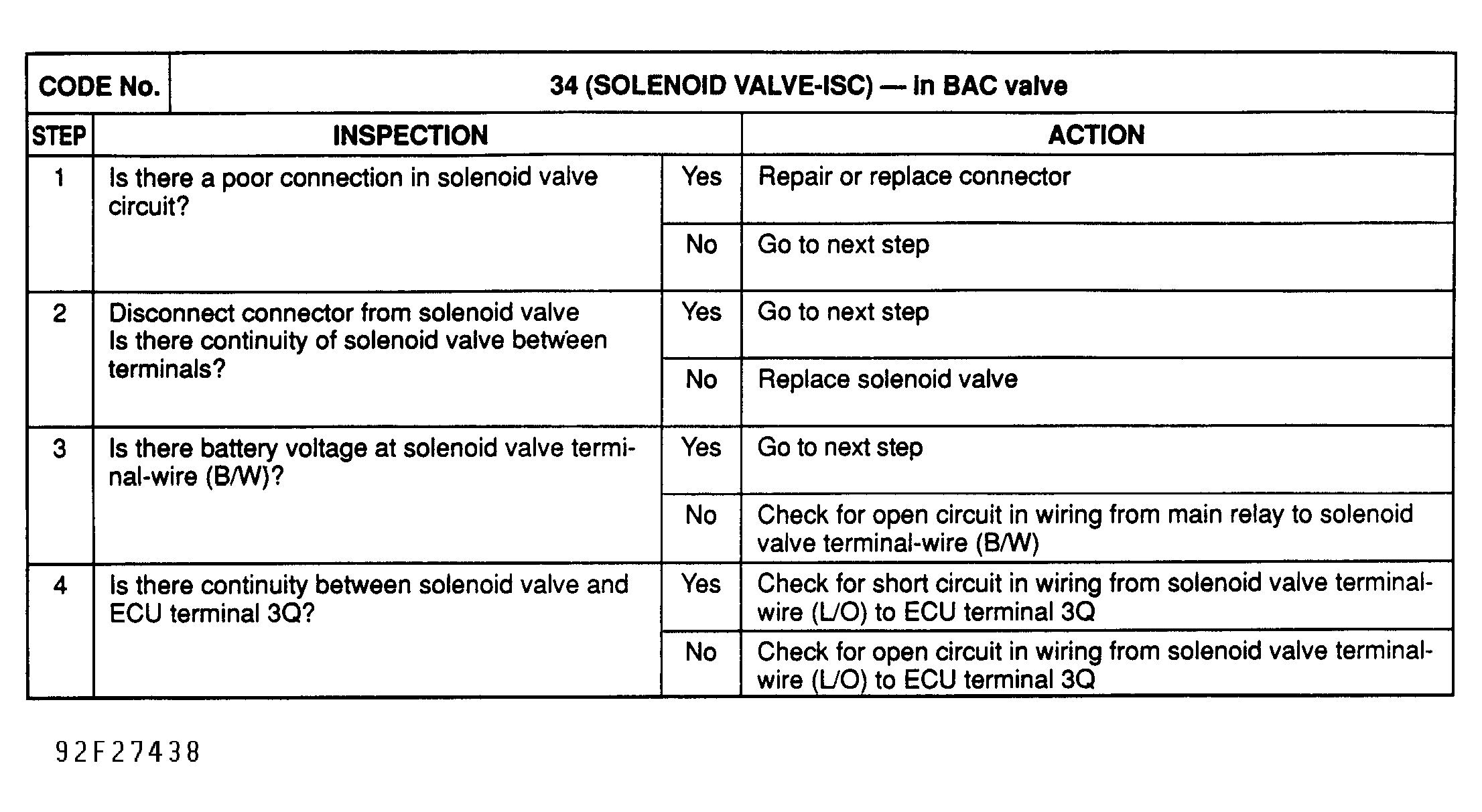

Fig 1: Trouble Code No. 34 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
