Code 8: (Airflow Meter)

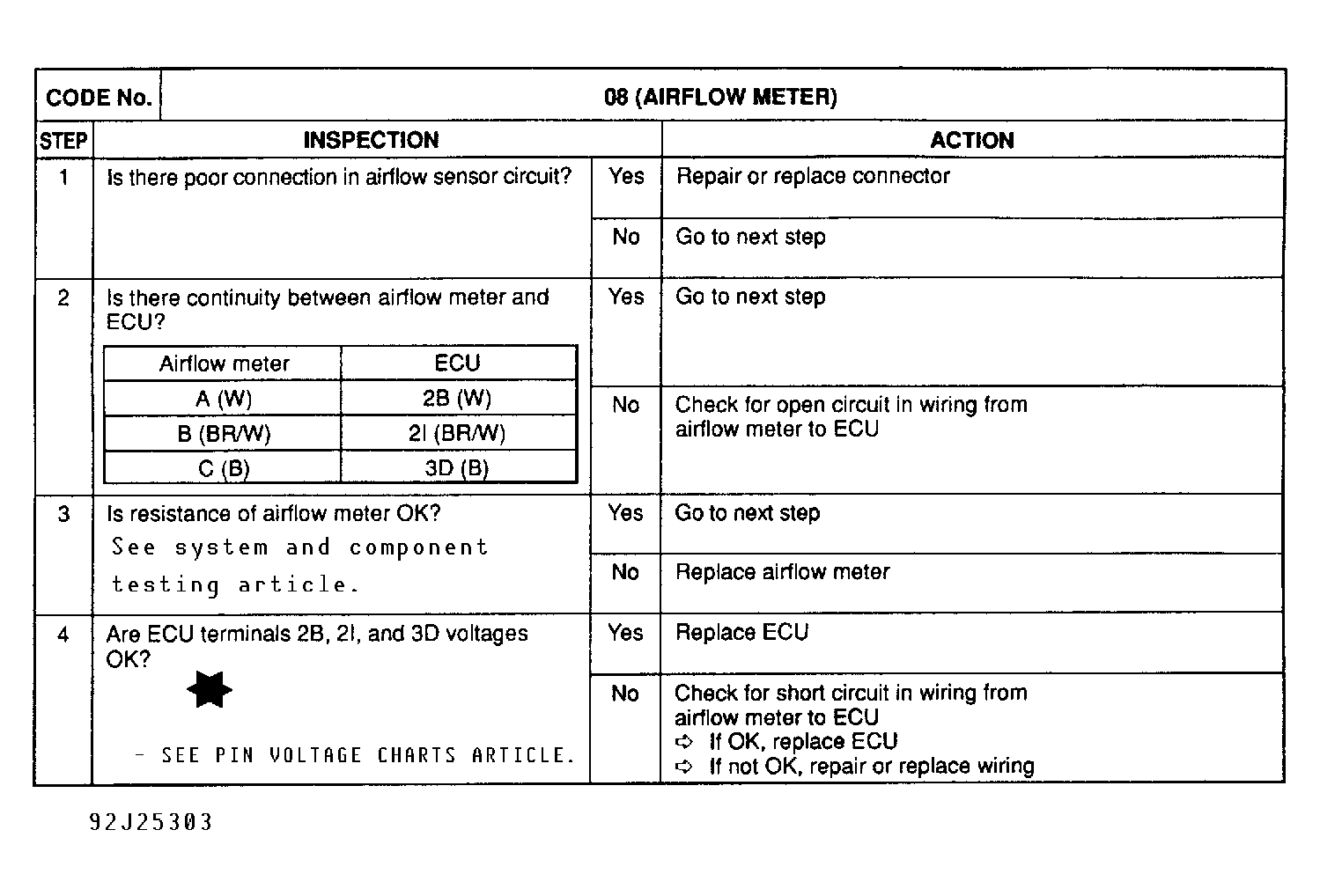

Fig 1: Trouble Code No. 8 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
