Trouble Code Identification: Notes

NOTE: See PIN VOLTAGE CHART S article to identify ECU connector terminals.

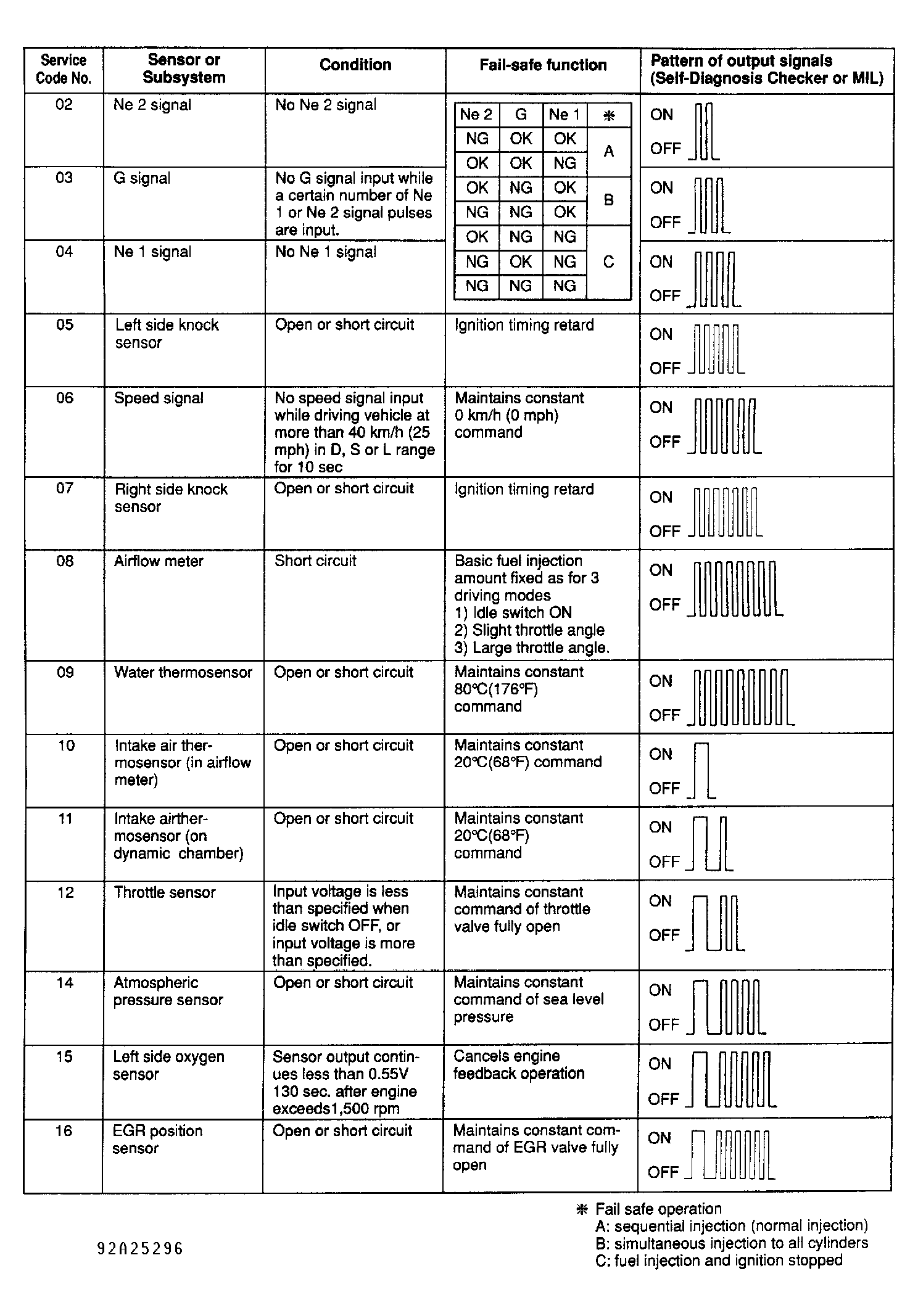

Fig 1: Trouble Code Identification (1 Of 2)
G92A25296Courtesy of MAZDA MOTORS CORP.

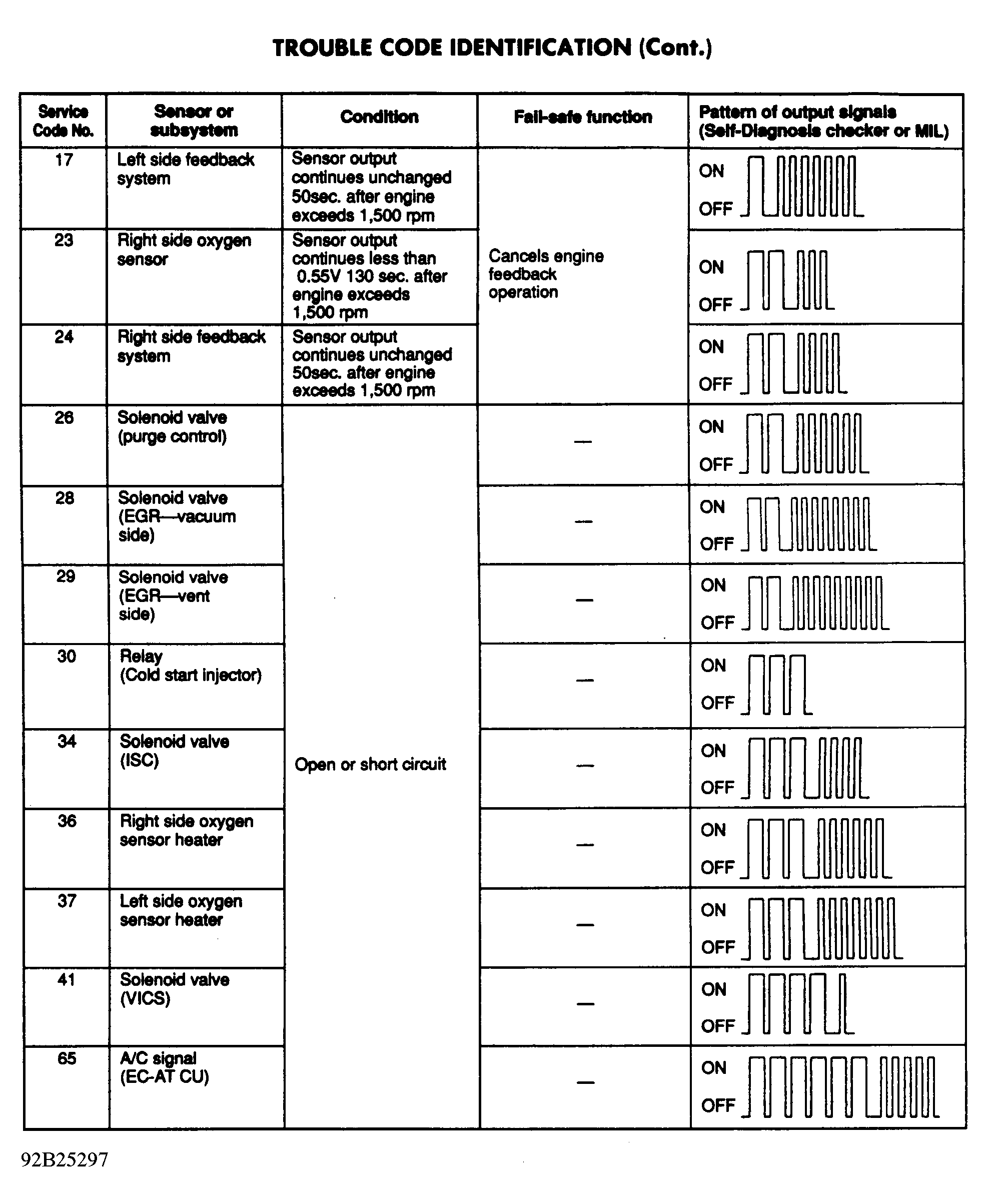

Fig 2: Trouble Code Identification (2 Of 2)
G92B25297Courtesy of MAZDA MOTORS CORP.
