Code 1: (Ignition Pulse)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 1: (Ignition Pulse)

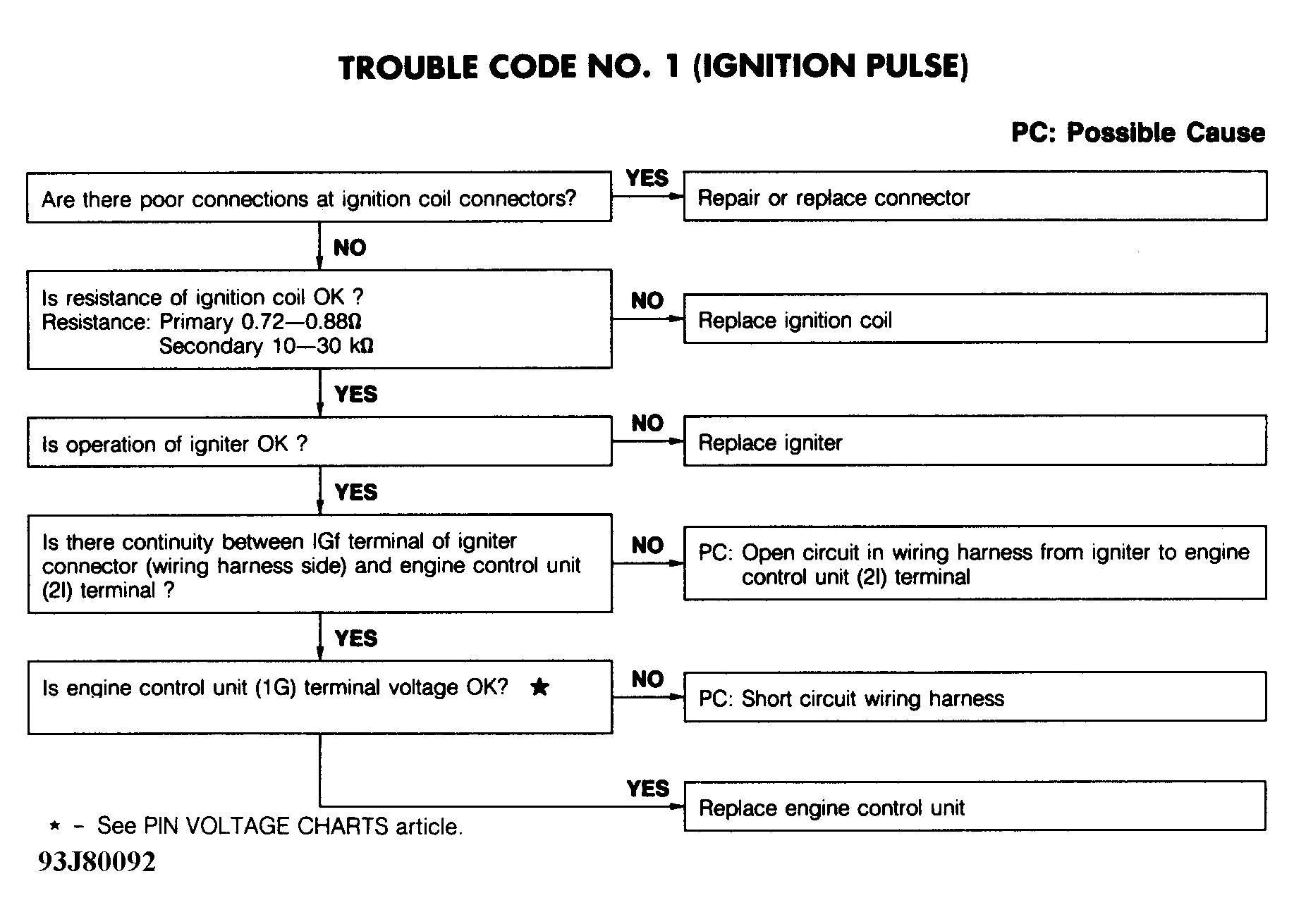

Fig 1: Trouble Code No. 1 (Ignition Pulse)
Courtesy of MAZDA MOTOR CORP.
Courtesy of MAZDA MOTOR CORP.
