Code 10: (Intake Air THERMOSENSOR - Airflow Meter)

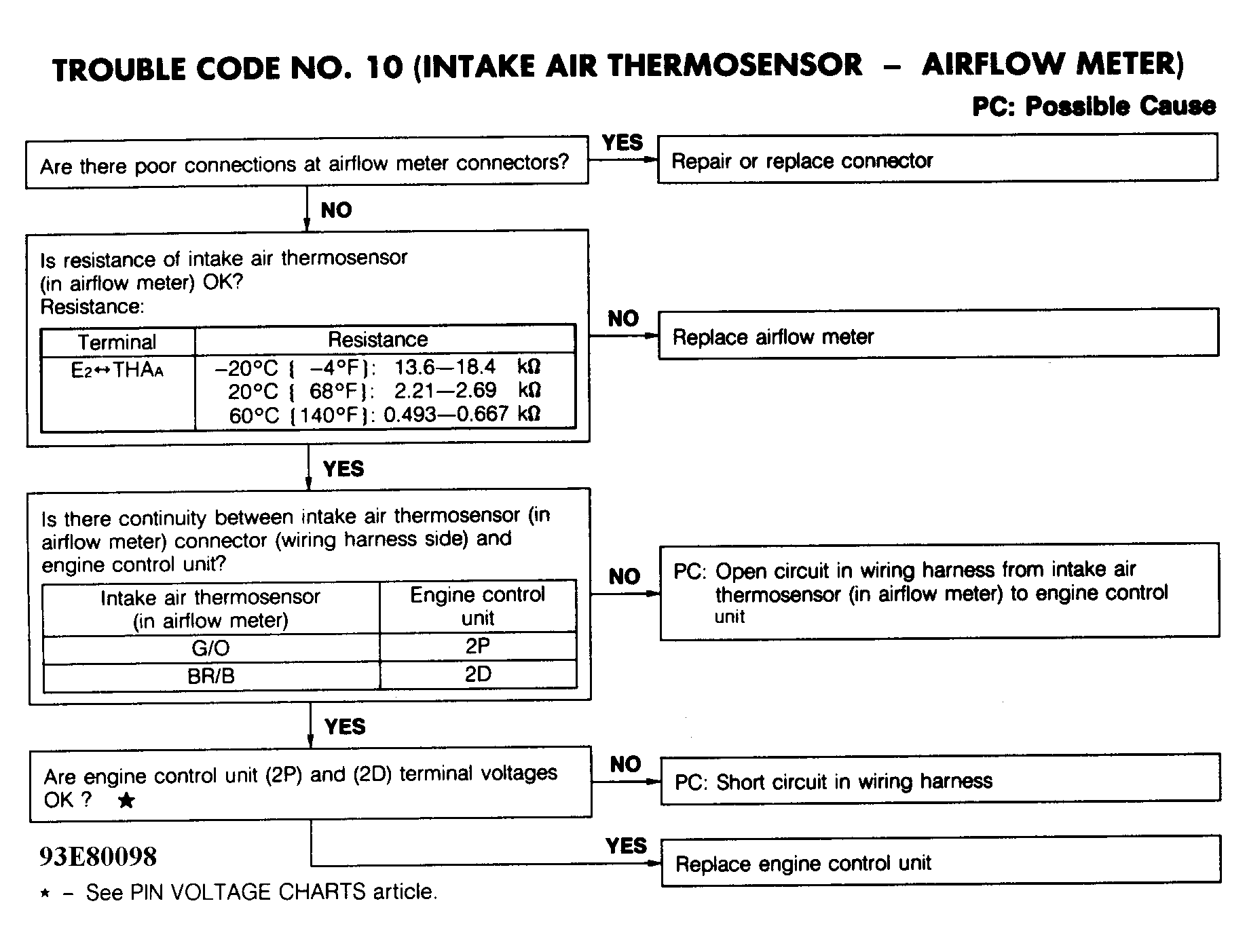

Fig 1: Trouble Code No. 10 (Intake Air Thermosensor - Airflow Meter)
G93F80098Courtesy of MAZDA MOTOR CORP.
