Code 15: (Oxygen Sensor)

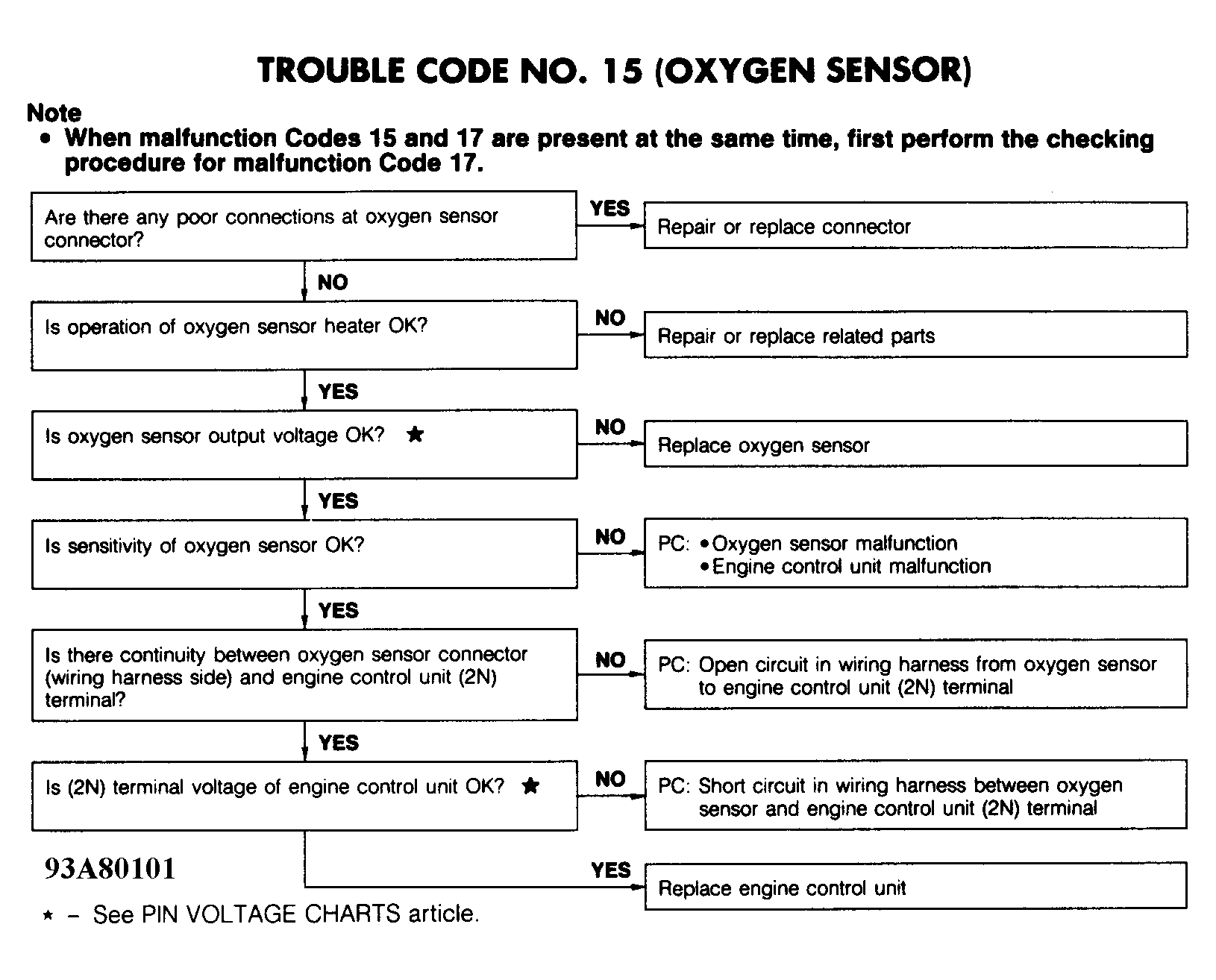

Fig 1: Trouble Code No. 15 (Oxygen Sensor)
Courtesy of MAZDA MOTOR CORP.
Courtesy of MAZDA MOTOR CORP.
