Code 9: (Water THERMOSENSOR)

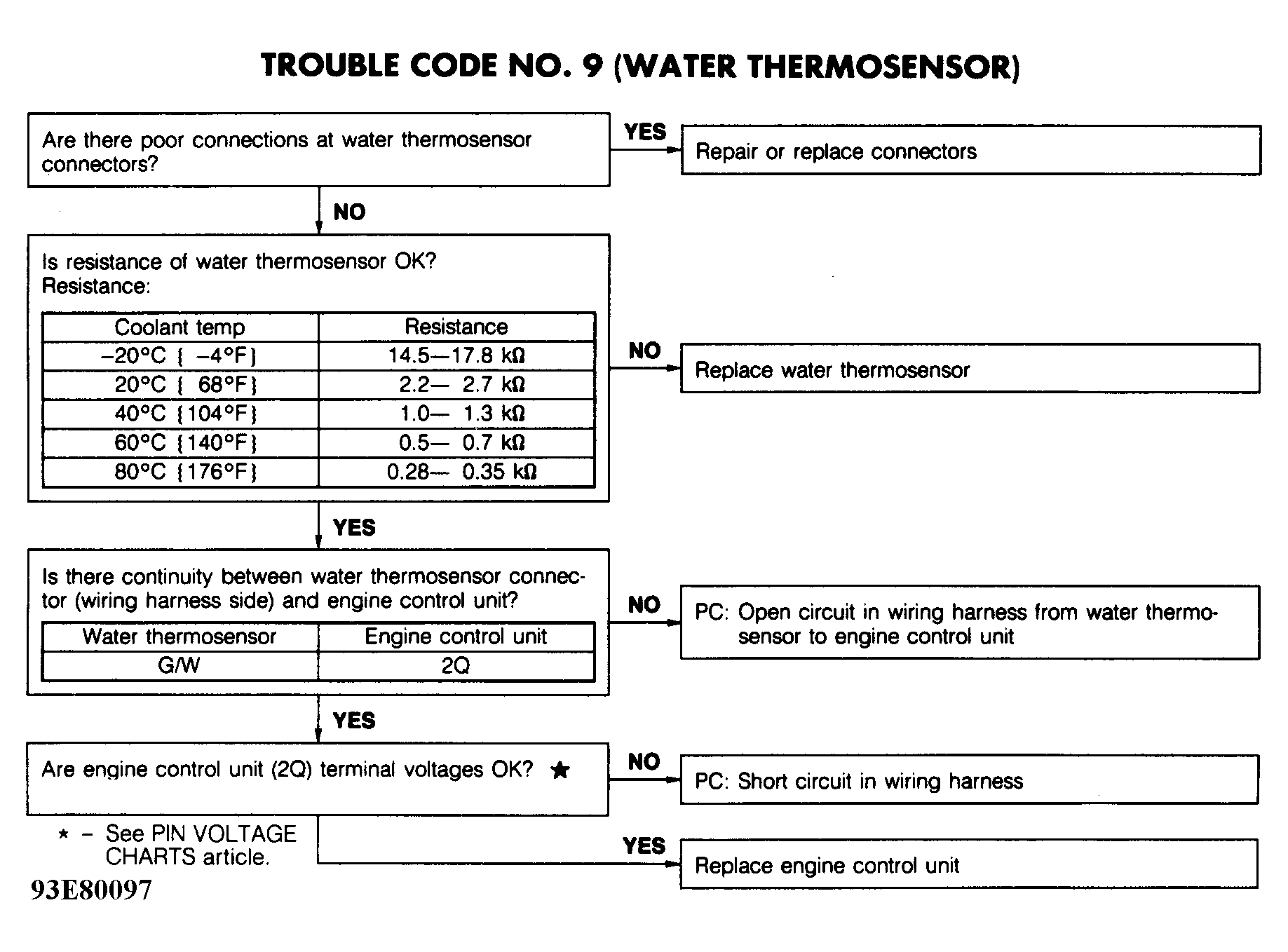

Fig 1: Trouble Code No. 9 (Water Thermosensor)
Courtesy of MAZDA MOTOR CORP.
Courtesy of MAZDA MOTOR CORP.
