Trouble Code Identification: Notes

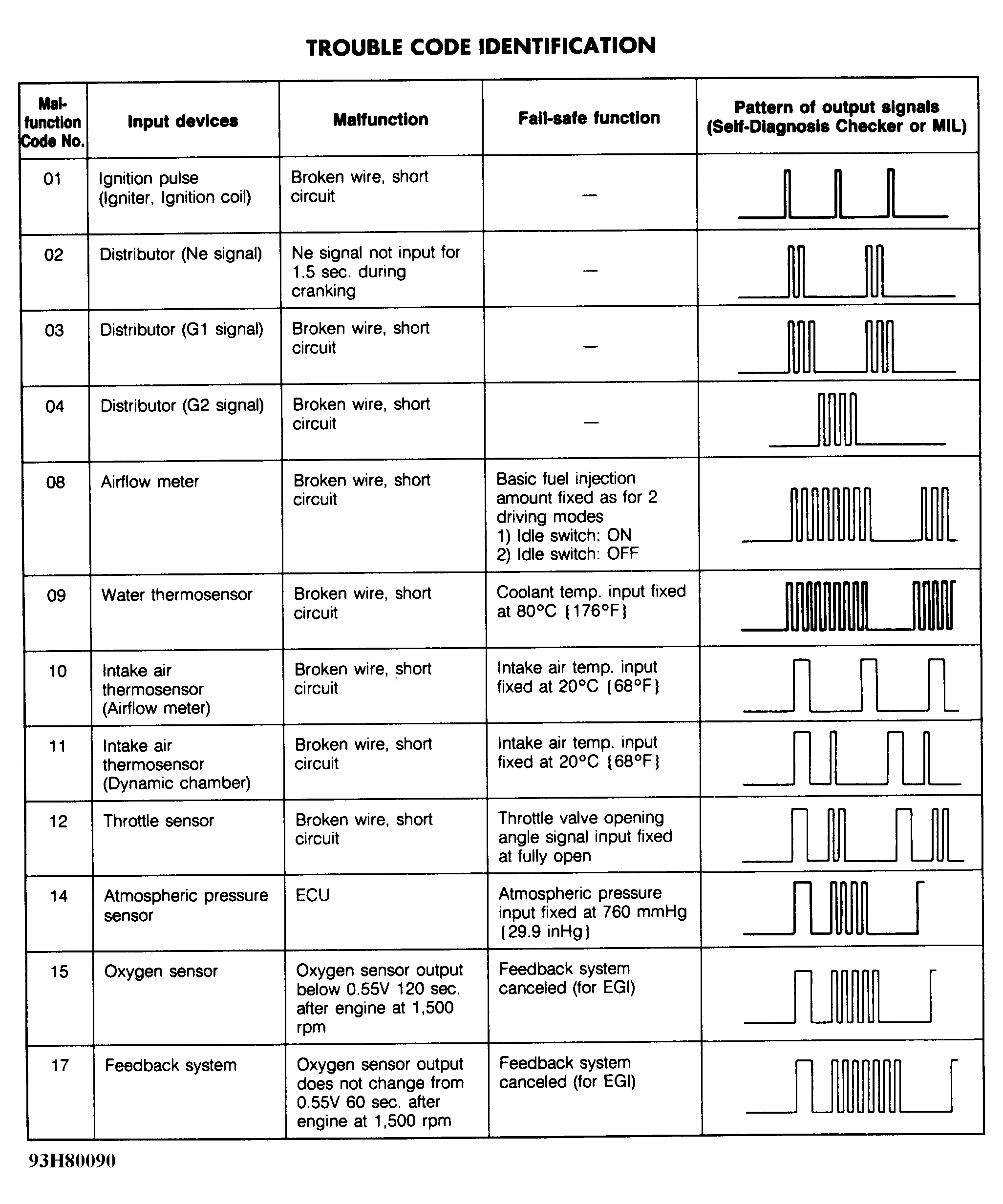

Fig 1: Trouble Code Identification
G93H80090Courtesy of MAZDA MOTOR CORP.

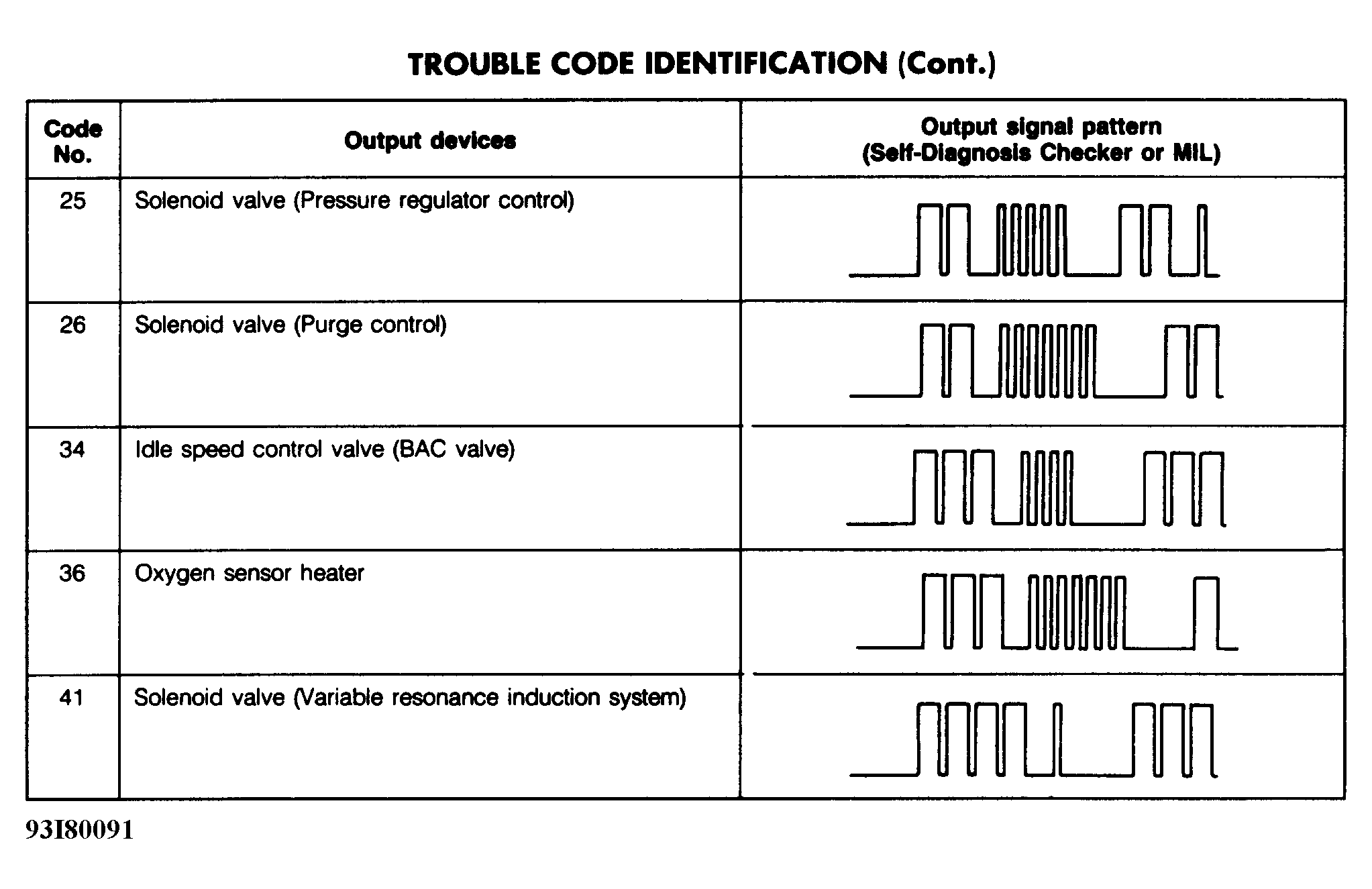

Fig 2: Trouble Code Identification (Cont.)
G93I80091Courtesy of MAZDA MOTOR CORP.
