Code 18: (Throttle Sensor - Narrow Range)

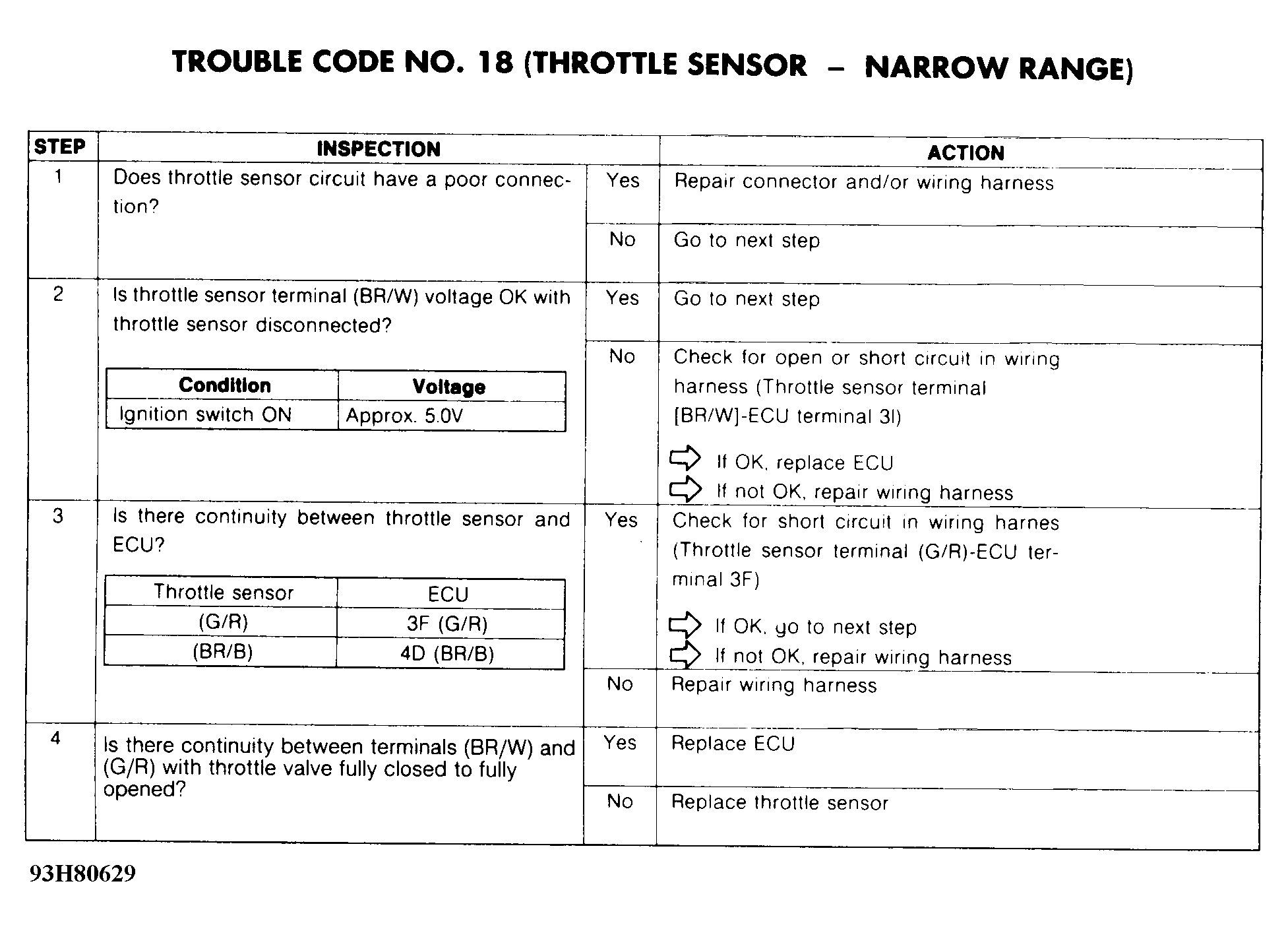

Fig 1: Trouble Code No. 18 - Diagnostic Flowchart
G93H80629Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 18 - Schematic
G93F80619Courtesy of MAZDA MOTORS CORP.
