Code 2: (Crank Angle Sensor - Ne Sensor)

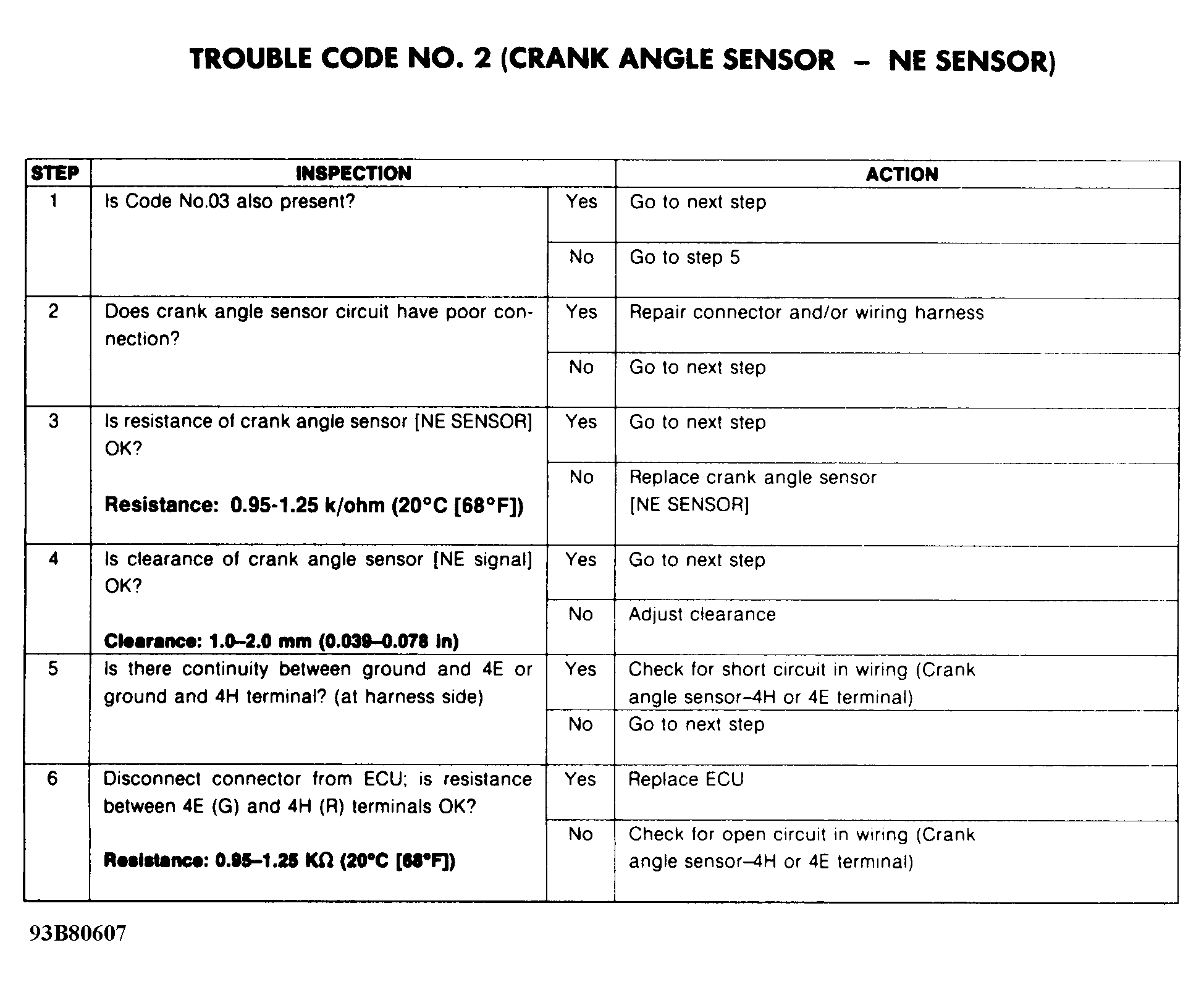

Fig 1: Trouble Code No. 2 - Diagnostic Flowchart
G93B80607Courtesy of MAZDA MOTORS CORP.

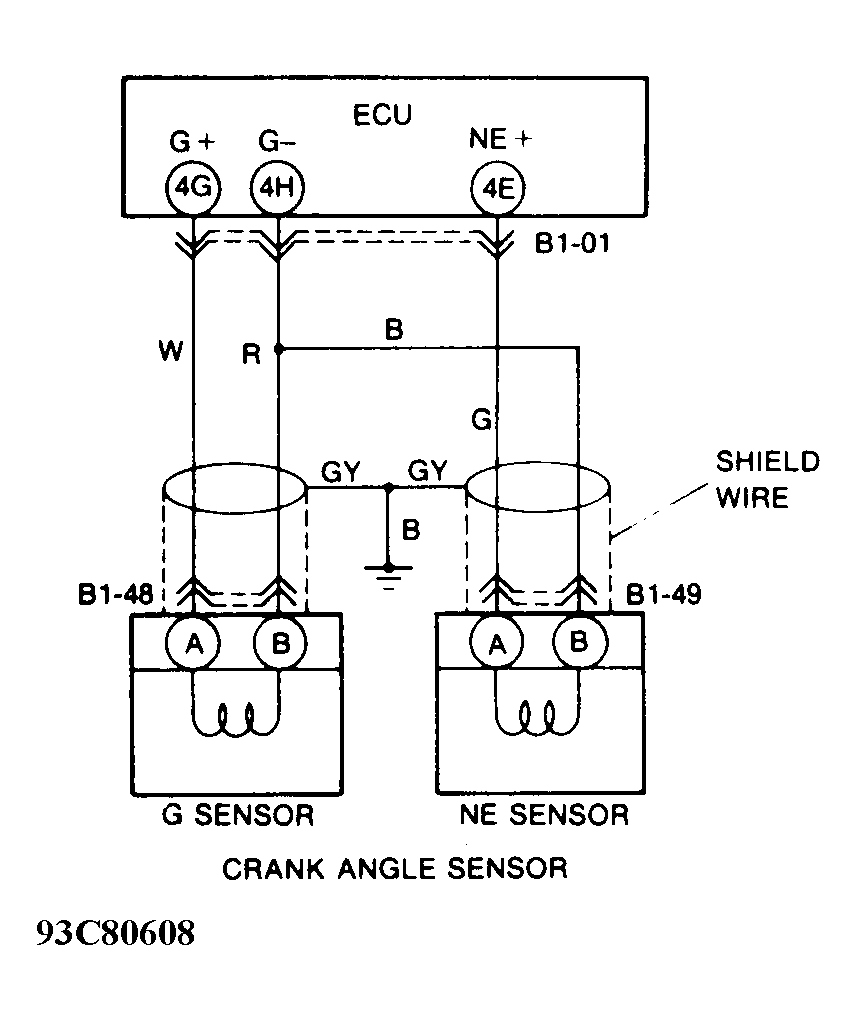

Fig 2: Trouble Code No. 2 - Schematic
G93C80608Courtesy of MAZDA MOTORS CORP.
